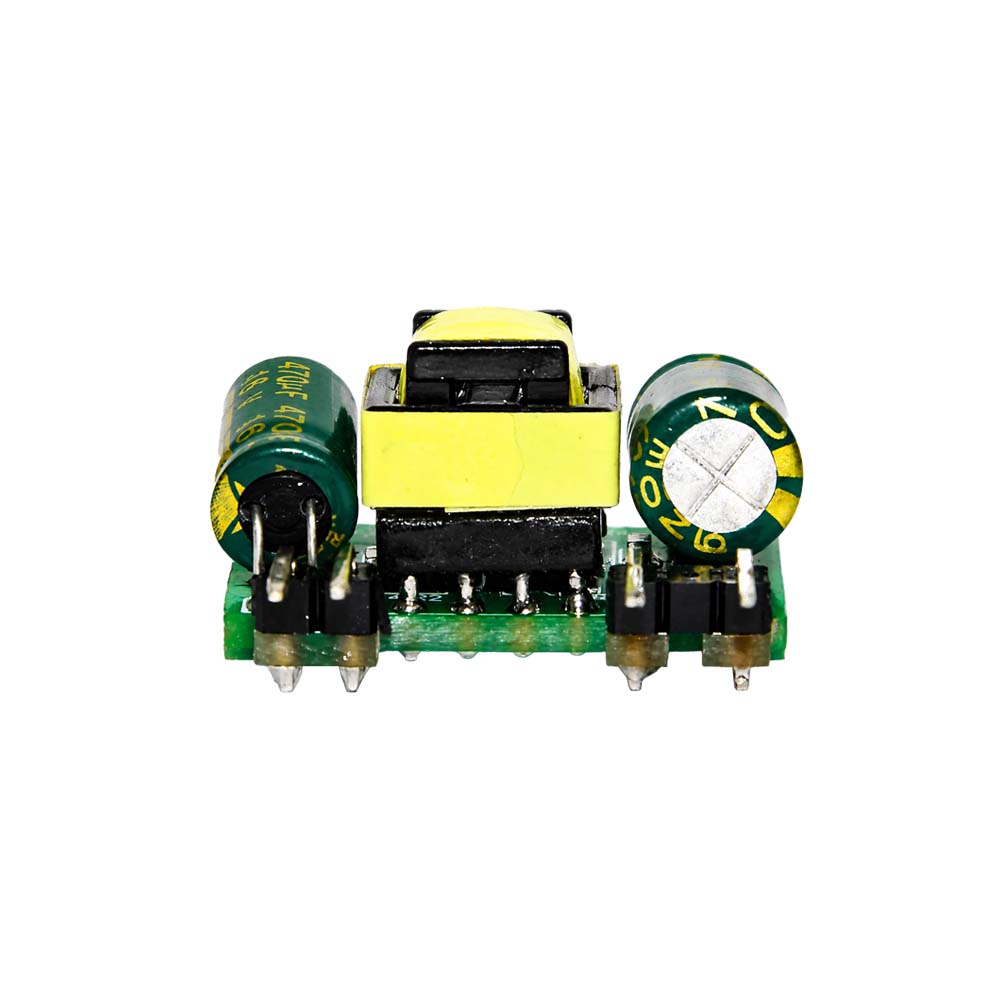

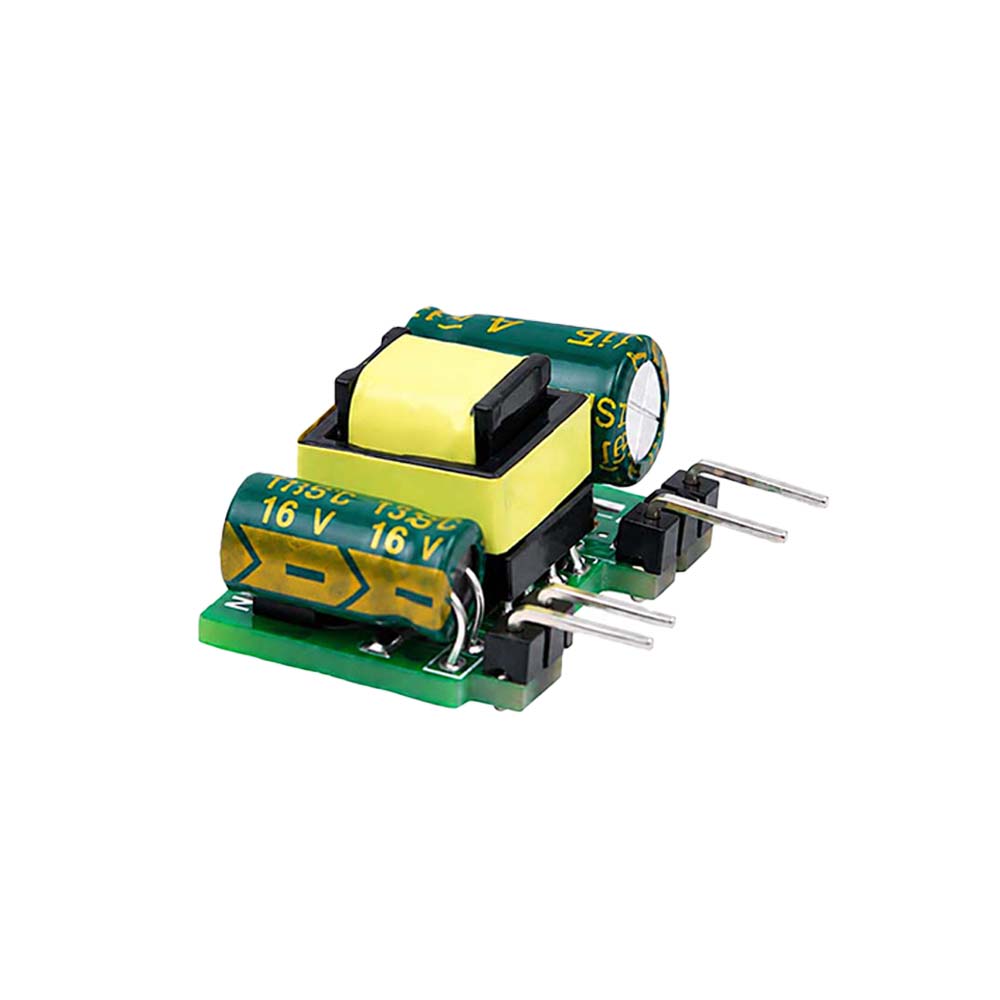

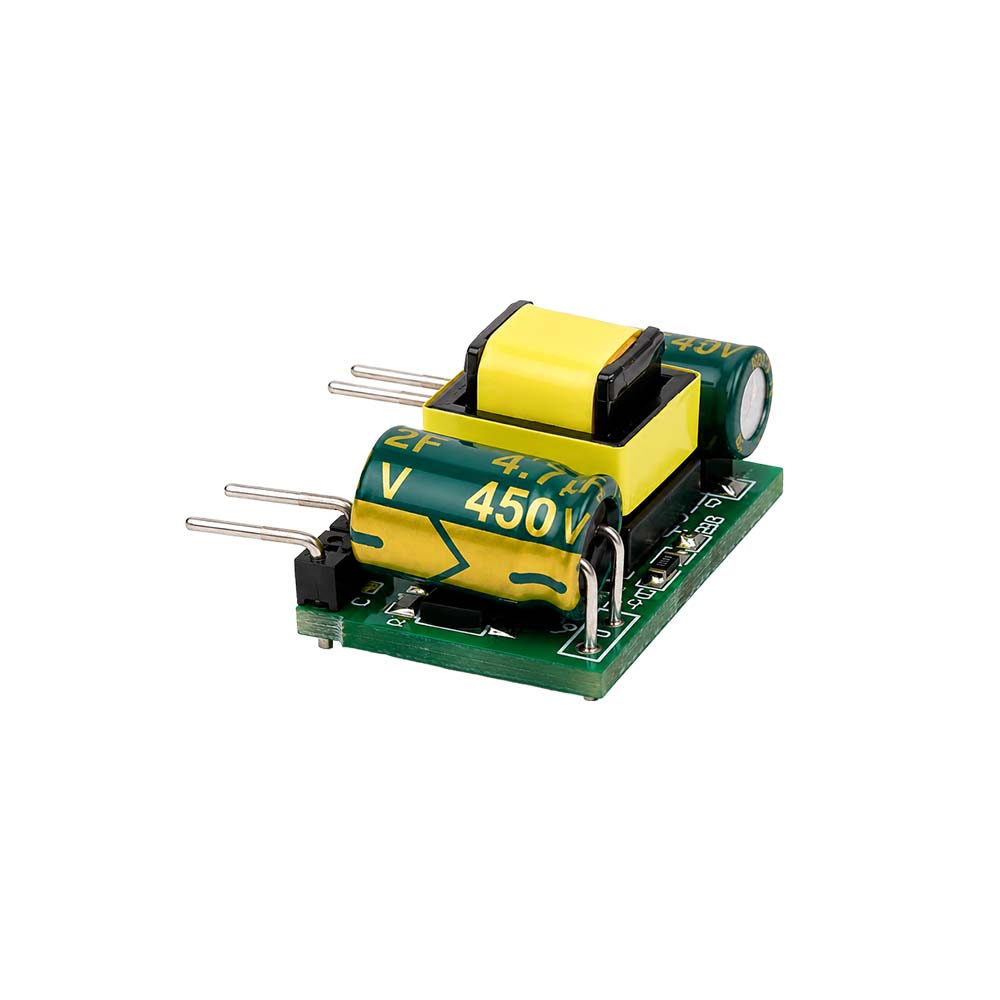

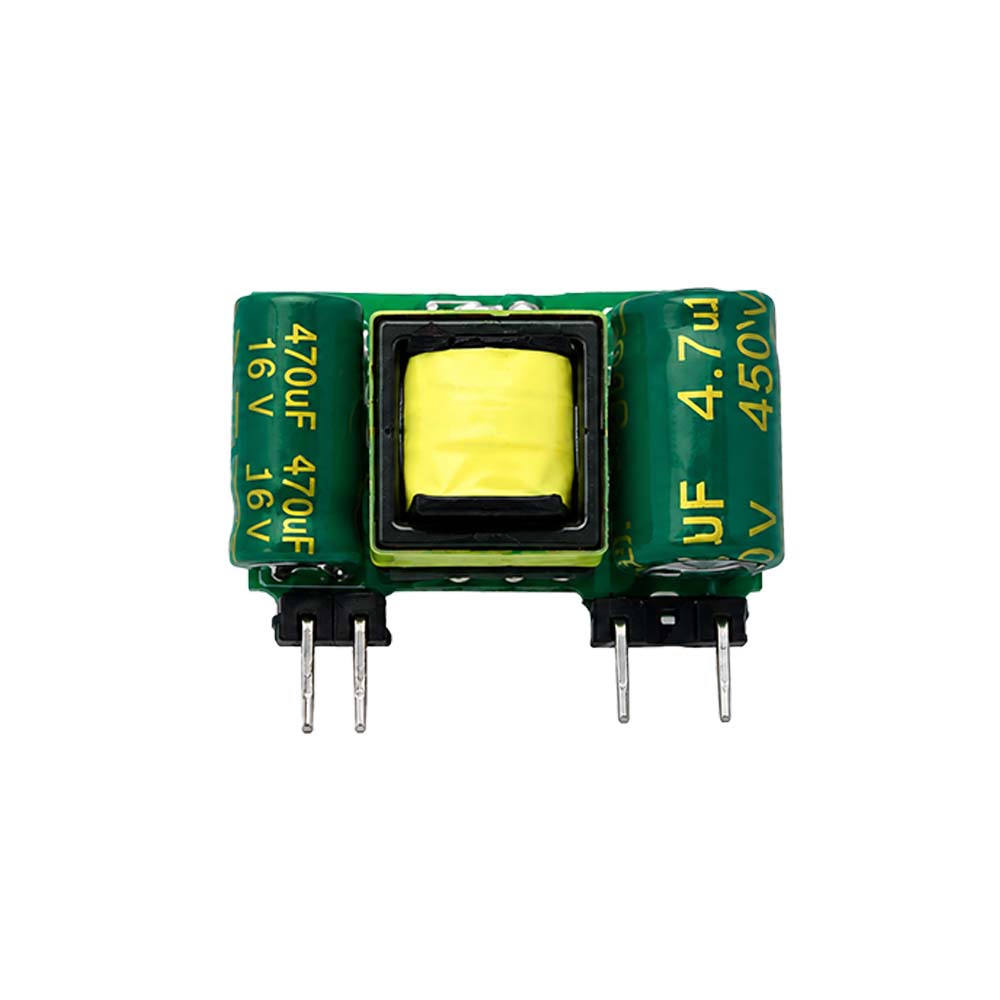

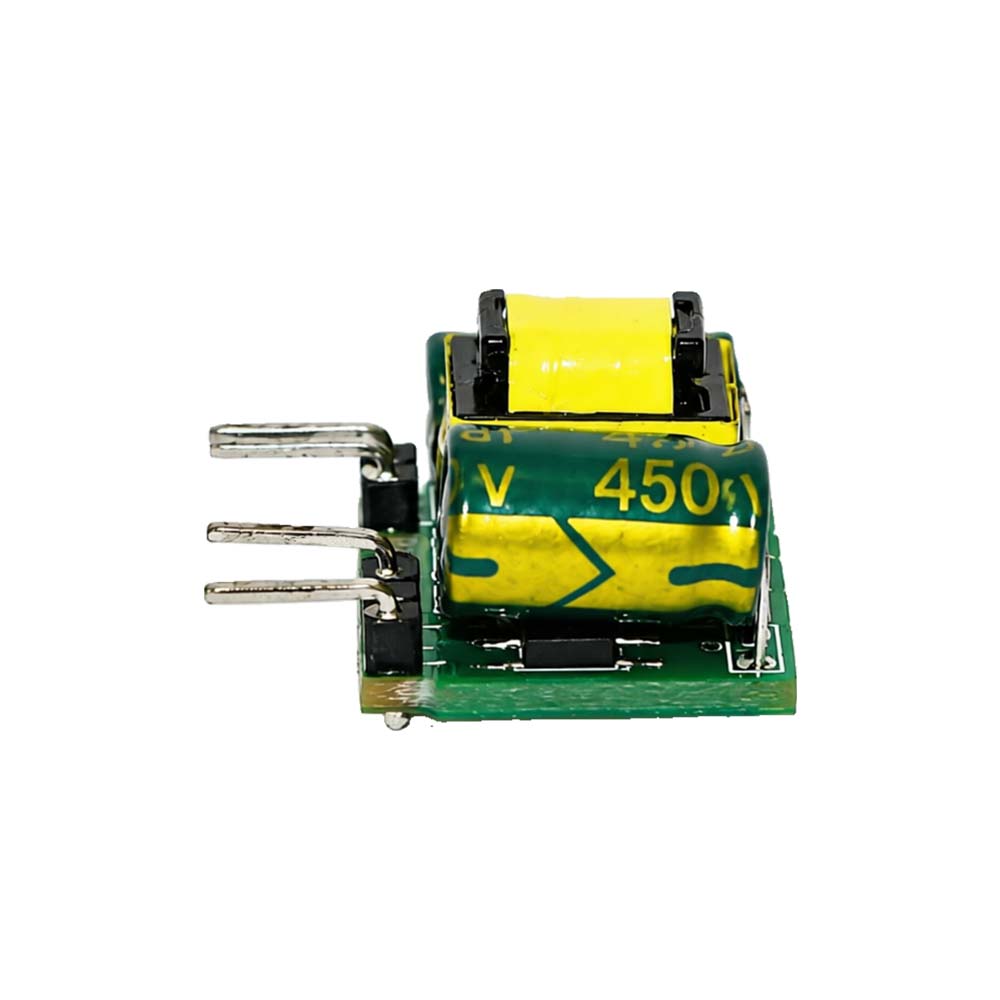

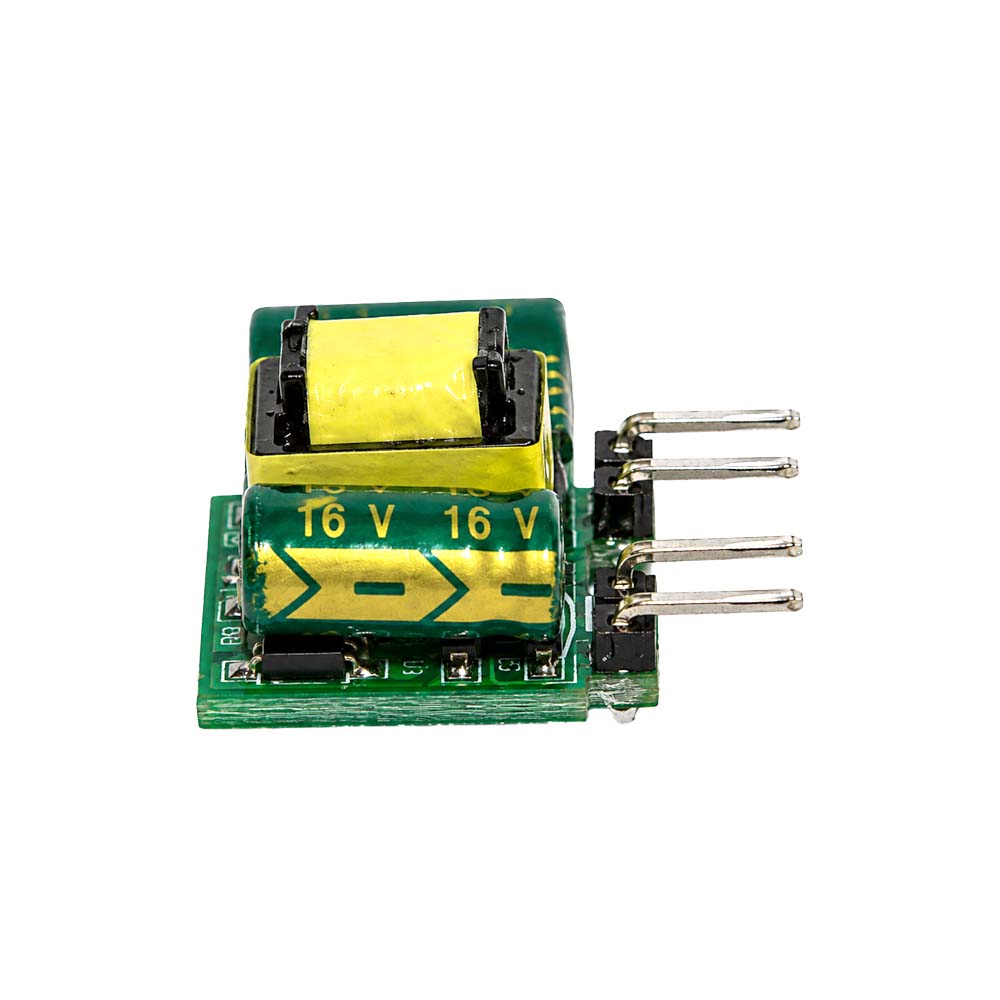

DL-PS-5W Series Mini Isolated Switching Power Supply

DL-PS series is a high-performance miniature isolated AC-DC switching power supply developed by Deli Group. With an optimized topology architecture, it supports an ultra-wide AC input voltage range of 100–280V and offers regulated DC output options from 3.3V to 36V.Built-in protections against short circuit, overload and over-temperature ensure reliable operation. The series is ideal for industrial automation, intelligent instruments, medical devices and other applications requiring compact size, high reliability and stable power delivery.

Quantity:
Input Voltage:	AC 100–280V
Input Frequency:	50/60Hz
Rated Output Voltage:	DC 3.3V/5V/6V/9V/12V/15V/18V/24V/36V
Rated Output Current:	3.3A/1.0A/8.3A/5.6A/4.2A/3.3A/2.8A/2.1A/1.4A
Output Voltage Accuracy:	±5%
Output Power:	5W
Availability:





Inquire Add to Basket

Model:
DL-PS-5W
Brand:
deli

5W AC-DC Converter Module Miniature AC-DC Power Module PCB Mount Power Supply Isolated Switching Power Supply 5W 12V Isolated Power Supply 100-280VAC to 12V Power Module Wide Input AC-DC Power Module Industrial Automation Power Supply Medical Equipment AC-DC Converter DL-PS-5W Series

Product Description

DL-PS-5W Series Mini Isolated Switching Power Supply

1. Product Overview

DL-PS series is a high-performance miniature isolated AC-DC switching power supply developed by Deli Group. With an optimized topology architecture, it supports an ultra-wide AC input voltage range of 100–280V and offers regulated DC output options from 3.3V to 36V.Built-in protections against short circuit, overload and over-temperature ensure reliable operation. The series is ideal for industrial automation, intelligent instruments, medical devices and other applications requiring compact size, high reliability and stable power delivery.
