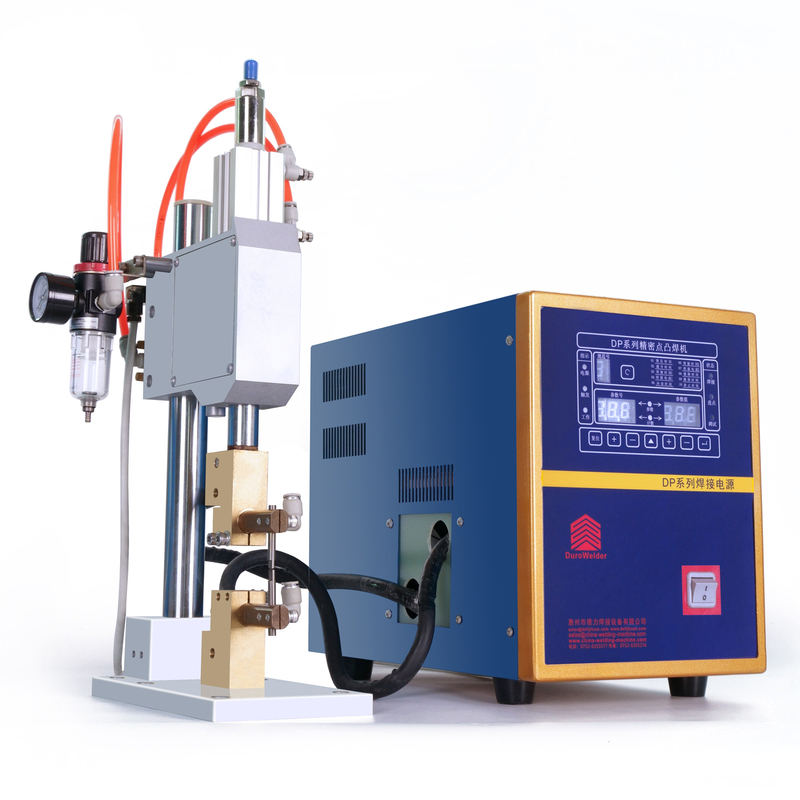

Dual Pulse Series Capacitor Discharge DC Welding System includes two main parts:DcWelding Power Source and Pneumatic Spot Welding Head. Power Source Part canwork with other automatic welding tooling and fixture, the Welding Head can also workwith other kind of welding power supply.
DC Welding Power Supply adopt the microprocessor controlling system, speciallydesigned for precision resistance welding,can output the stable and consistent weldingenergy for different workpieces,not affected by the fluctuation of input voltage.
Dual Pulse Function can eliminate the welding surface differences,also can store manygroups of welding schedules and welding parameters.Because it can rapidly produce highpeak welding energy in a very short period of time, the welding time is very short,Thisfunction is especially important when welding highly conductive materials such
ascopper,brass.aluminum,nickel,compared to the general AC power and the general inverterwelding source,it has the particularly good welding quality,the welding deformation is thesmallest.
| Rated Input Voltage | 220V1240V 50HZ160HZ |
| Input Power | 1KVA |
| Max Capacitance Energy | 250J |
| Main Electrical Switch | 500V,10A |
| Power Source Safety Fuse | 15A |
| Welding Contacting Cable | ≥4mm² |
| Power Source Earth Wire | ≥2mm² |
| Pressure Mode | Pneumatic + Spring |
| Welding Pressure | 0.5Mpa |
| Air Compressor | >1HP |
| Input Air Tube Diameter | φ8mm |
| Welding Electrode Stroke | 20 mm |
| Welding Throat Gap | 60mm |
| Welding Arm Throat | 80mm |
| Welding Electrode Diameter | 6mm |
