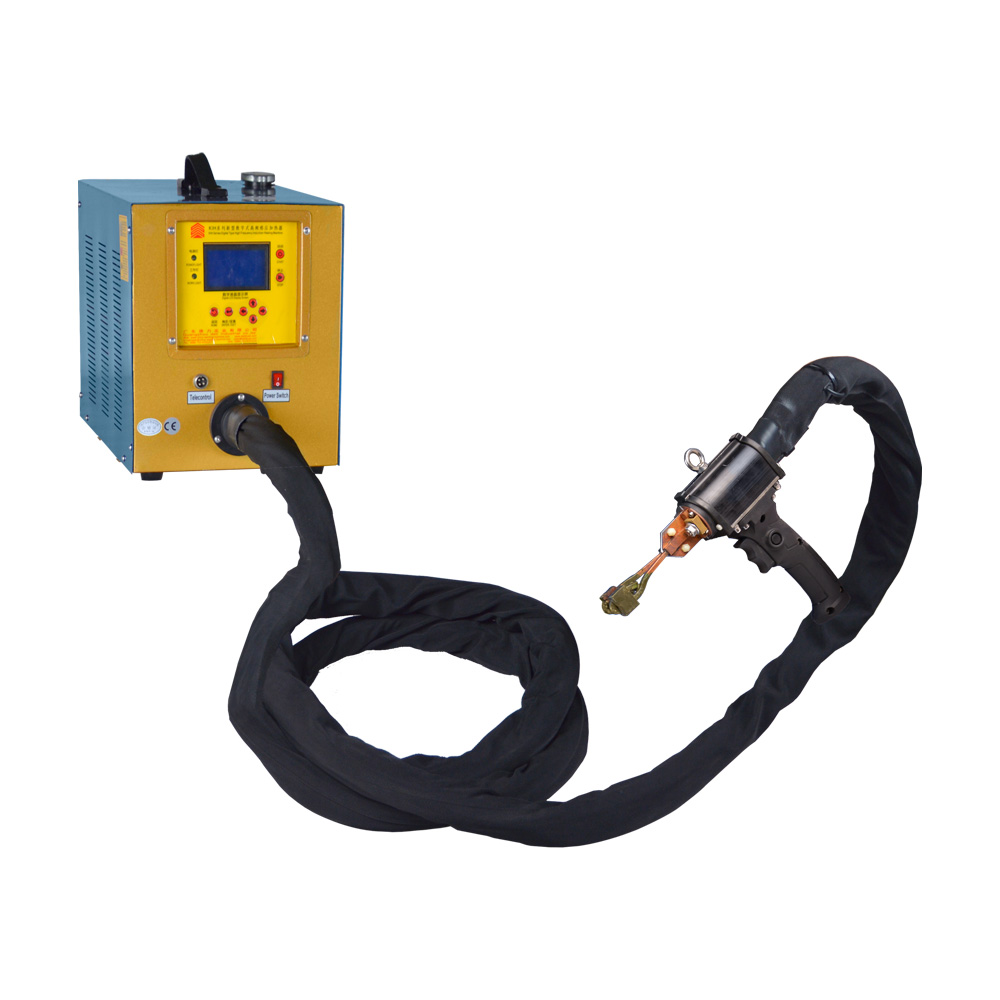

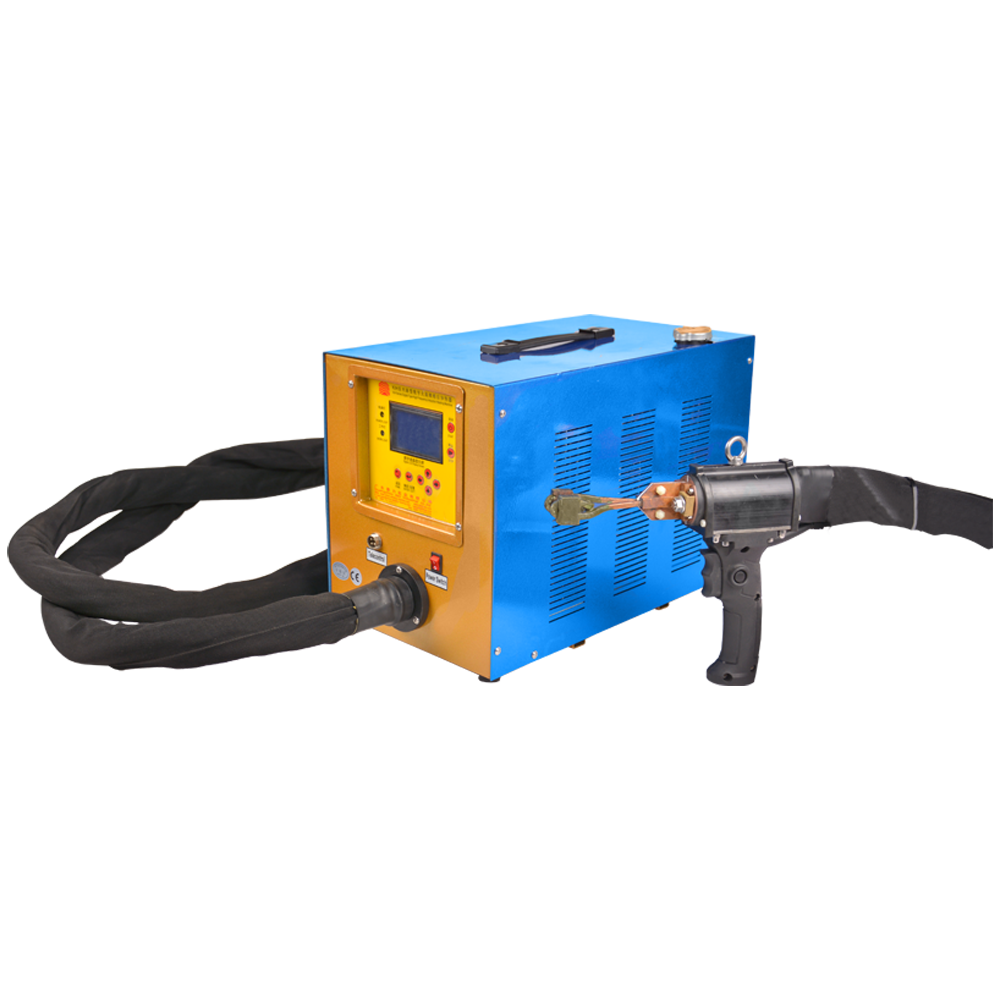

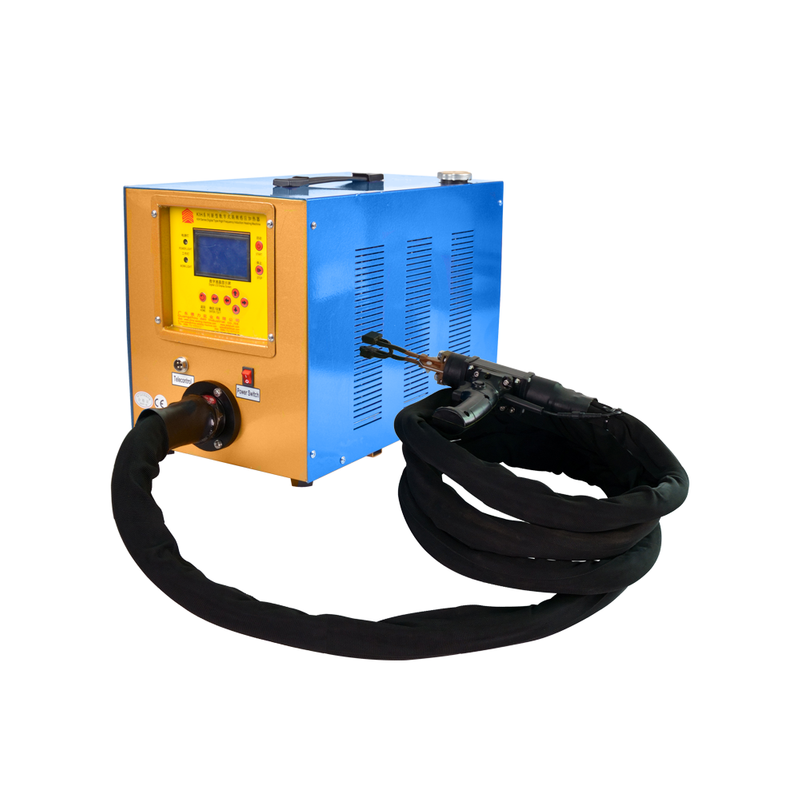

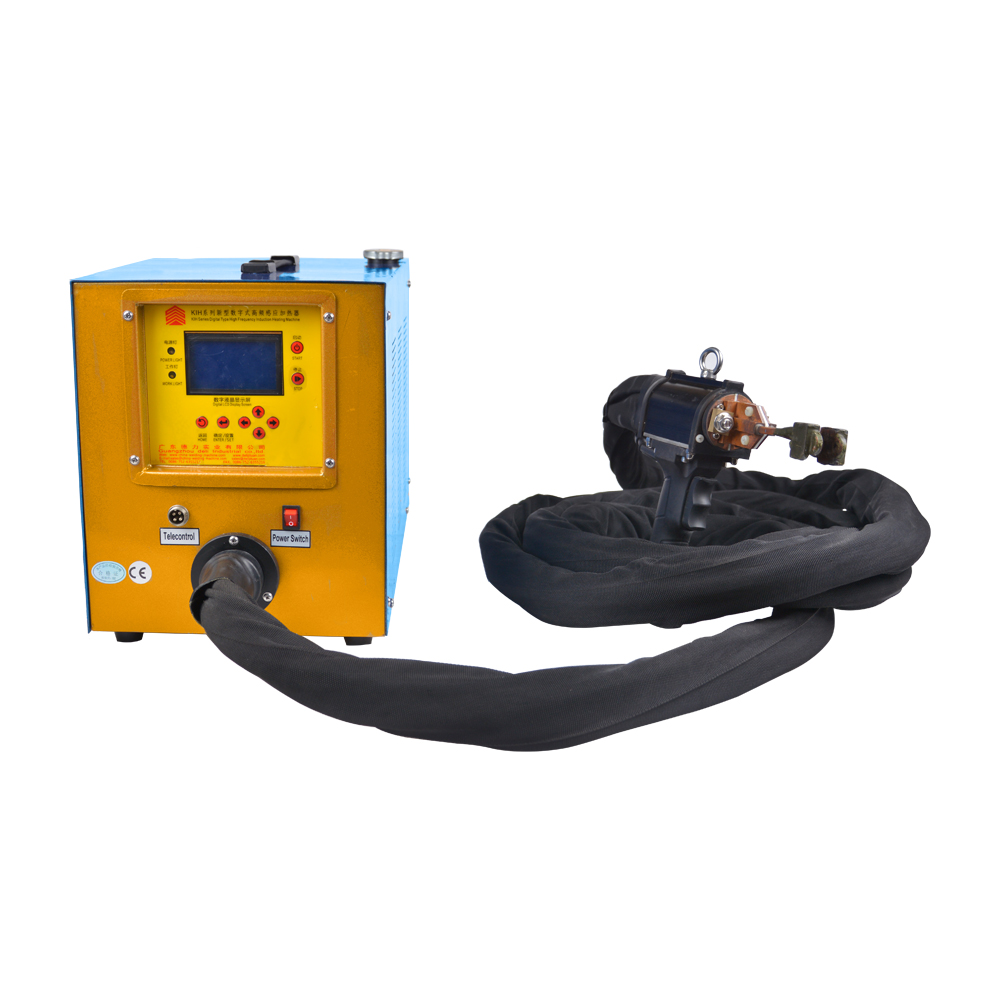

DW-15KW Movable and Portable Induction Heater
Equipment Main Characteristics：
Portable Induction heater lntegrated with water cooling system. Mainly used for heating and welding various metal workpieces, such as locally quenched workpieces, copper tube welding, annealinq,etc.

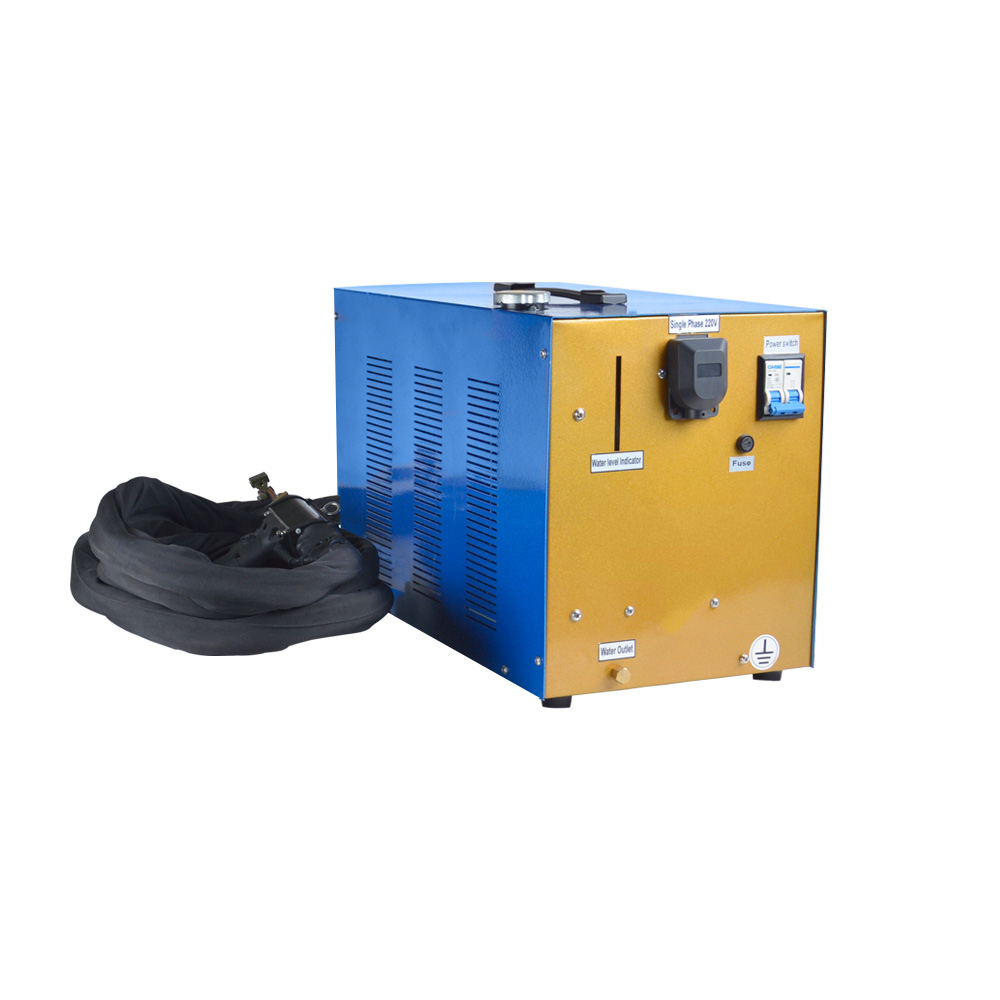

2.The body is equipped with a 2 5liter water tank and cooling system. which eliminates the need for externa water sources, lt is compact and portable, breaking through the imitations of tradition a high frequency induction heaters. and can meet outdoor operations.
3, Adopt imported MOSFETs and IGBT solid-state power modules and advanced frequency conversion technology.
4, Fully functional, including fault status protection and display for overcurrent, overvoltage, water shortage overheating, etc., providing higher reliability and durability.
5. Novel design, simple installation, no need for debugging, and convenient use6. Simple and safe operation, easy to carry, single-phase can meet turn on, especially suitable for temporary heating steel and brazing copper. Includes metal rods, tubes, plates, screws, nuts, spindles, bearings, and more.
Main Technical
型号 | Mode | DW-15KW |
震荡频率 | Fluctuating Frequency | 45-60HZ |
最大输出功率 | Max Output Power | 15KW |
输入电压 | Input Voltage | 110/220/240V50/60HZ |
输出电缆长度 | Output Cable Length | 标准长度5米，最长可定制200米 5 Meter(Satand Length), Can customize max 200 Meter |
冷却液 | Coolant liquid | 可注入2.5L水或冷却液2.5L Water or Other Cooling Liquid |
水温保护点 | Water Temperature Protection Point | 50℃ |
重量(机身) | Net Weight(KG) | 15KG |
外形尺寸 | Dimension(L*W*H) | 40*22*28CM |
