Features of the Machine

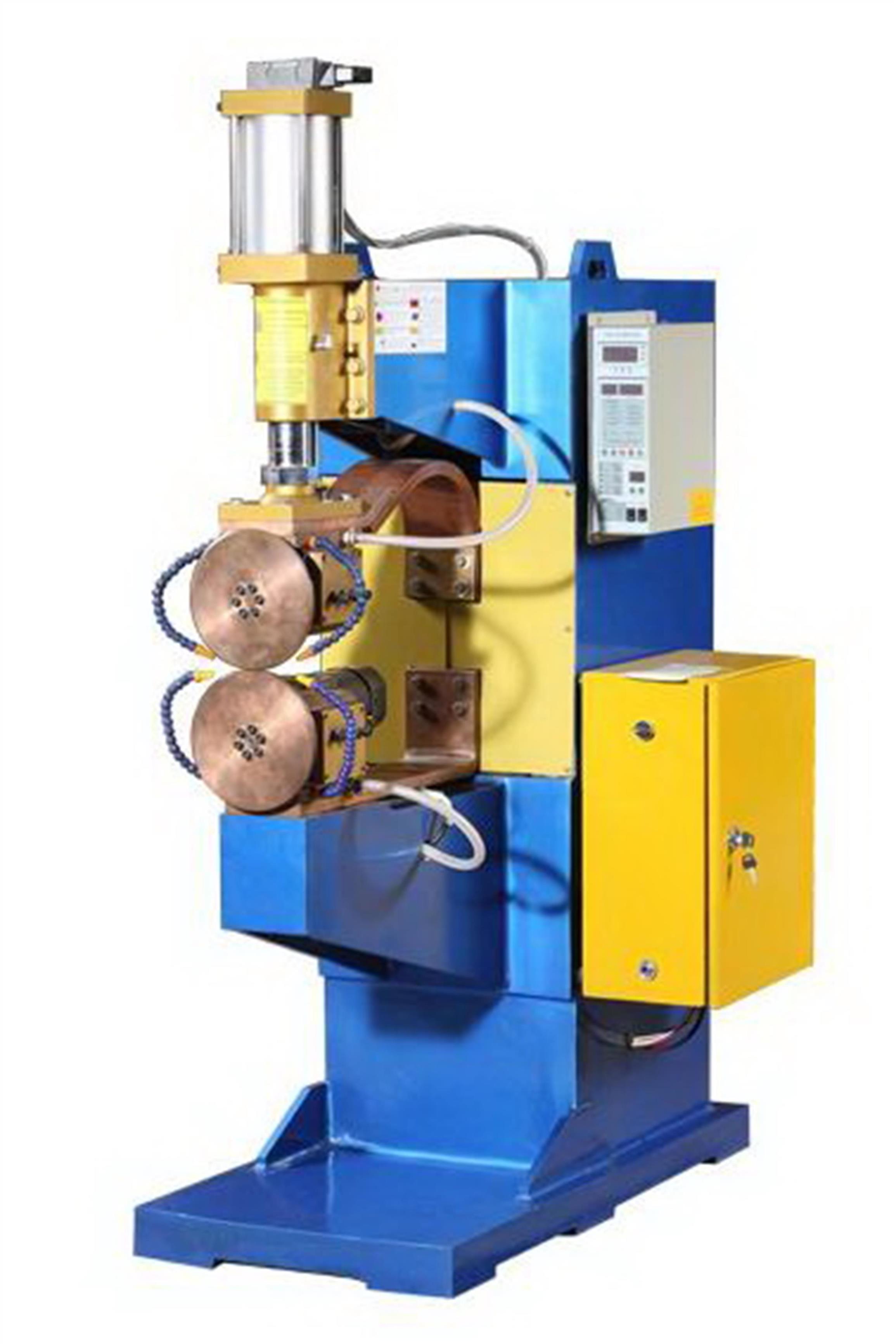

1. There is two standard models: Transversal Seam Welding Model and Longitudinal Seam Welding Model.
2. Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to change the direction of upper seam wheel head and change the lower welding head and welding arm within minutes.
3. Driven one head and free the other head. The two seam wheels have the same tangential speed.
4. Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
Main Technical Parameter
项目 Item
型号
Model | 额定
容量 | 额定初
级电压 | 额定
频率 | 短
路电流 | 电极
行程 | 焊接
速度 | 电极
压力 | 电动机
电源 | 电动机
功率 | 冷却
水流量 | 重量 |
| Rated
Capacity | Rated
Primary
Voltage | Rated
Frequency | Maximum
Short
Current | Electrode
Stroke | Welding
Speed | Electrode
Pressure | Motor
Power
Source | Motor
Power | Cooling
Water Flow | Weight |
| KVA | V | Hz | A | mm | M/min | KN | V | W | L/min | Kg |
FN-50 | 50 | 380 | 50/60 | 16000 | 50 | 0.6-4 | 2.5 | 3-380V | 90 | 30 | 500 |
FN-75 | 75 | 380 | 50/60 | 19000 | 50 | 0.6-4 | 3.9 | 3-380V | 150 | 30 | 650 |
FN-100 | 100 | 380 | 50/60 | 22000 | 50 | 0.6-4 | 4.7 | 3-380V | 150 | 30 | 880 |
FN-150 | 150 | 380 | 50/60 | 29000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1050 |
FN-200 | 200 | 380 | 50/60 | 35000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1250 |
