Main Technical Features:
1.High Power Output: Delivers a maximum output current of 11,000A, enabling instant welding and suitable for repairing aluminum panels of various thicknesses.
2.LED Digital Display: Provides real-time voltage readings for clear, user-friendly operation.
3.Lightweight & Compact Design: Features a lightweight structure and compact size, making it easy to carry and operate.
4.Small Heat-Affected Zone: The current automatically shuts off in no time after welding. The heat is concentrated precisely at the weld point. This minimizes metal deformation and ensures a smooth surface finish after repair.
5.Dual Protection System: Equipped with built-in overload and over-temperature protection, along with double safeguards for both the transformer and the welding gun, greatly extending the machine’s service life.

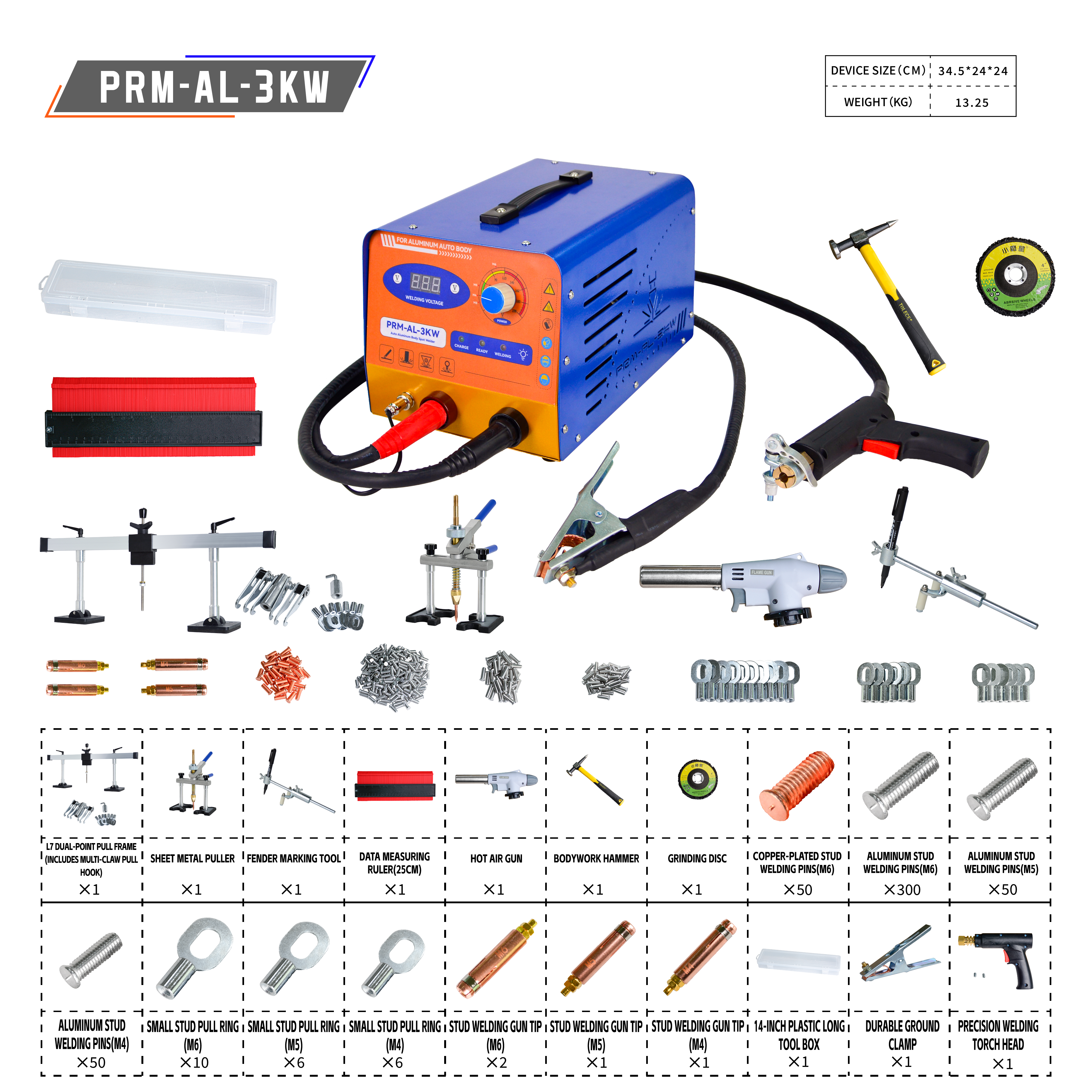

6.Multi-Function Capability: After stud welding, it can be used with a variety of repair tools for efficient, precise, and seamless aluminum body panel restoration
| Model No. | PRM-AL-3KW |
| Input Power Supply | AC,220V, 50/60Hz |
| Peak Current | 11000A |
| Rated Power | 3KVA |
| Output Voltage Range | 35V-198V |
| Capacitance | 12000μF |
| Plug Type | Type H,Type B,Type G,Type E,Type A |
| Device Size | 34.5CM*24CM*24CM |
| Packing Size | 62CM*40.5CM*35.5CM |
| Net Weight | 13.25KG |
| Gross Weight | 25KG |
