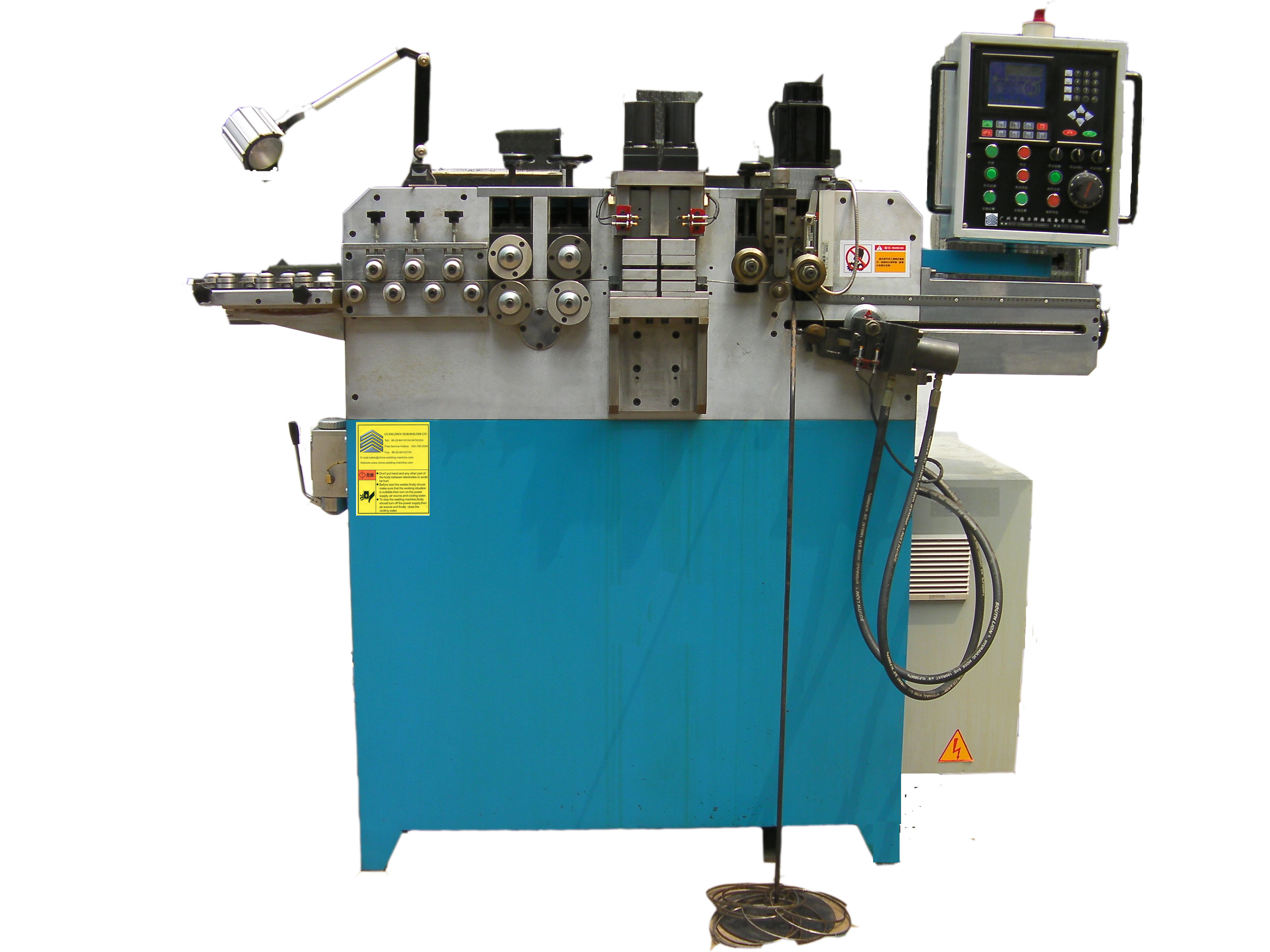

Automatic Wire Ring Making Machine

Automatic Wire Ring Making Machine

Characteristics and Applications:

Automatic Wire Ring Forming Machine is mainly used for bending the metal wire or metal strip into full circle,semicircle or any angle and any length concentric arcs.

As to the special wire and strip with noncircular cross section,only need to change the feeding roller,adjustable roller,pressing roller,and the cutter.Widely used in various of hardware manufacturing industry.

The fully Automatic CNC Ring Making Machine combines the advantages of Japan, Europe and Taiwan relative equipments,have high production rate,high precision,simple operation,energy saving,low production cost.

The whole process is finished automatically, can also be equipped with hole-punching function.

Quantity:
Availability:





Inquire Add to Basket

Brand:
Deli

Ring forming equipment Ring forming machine Ring making equipment Ring making machine Wire ring forming machine Wire ring forming equipment Wire ring making machine Wire ring making equipment Circle forming equipment

Product Description

Automatic Wire Ring Making Machine

Characteristics and Applications:

Automatic Wire Ring Forming Machine is mainly used for bending the metal wire or metal strip into full circle,semicircle or any angle and any length concentric arcs.

As to the special wire and strip with noncircular cross section,only need to change the feeding roller,adjustable roller,pressing roller,and the cutter.Widely used in various of hardware manufacturing industry.

The fully Automatic CNC Ring Making Machine combines the advantages of Japan, Europe and Taiwan relative equipments,have high production rate,high precision,simple operation,energy saving,low production cost.

The whole process is finished automatically, can also be equipped with hole-punching function.

Main Technical Parameters:

设备名称 Machine Name	型号Model No.	线径范围 Wire Diameter	圈径范围 Ring Diameter	速度 Production Rate	功率 Power
精密全自动气动打圈机Pneumatic Ring Making Machine	WR1-2	Φ1-2mm	Φ10-70mm	70件/分钟	2.2KW
精密全自动气动打圈机Pneumatic Ring Making Machine	WR1-4	Φ1-4mm	Φ10-60mm	110件/分钟	2.2KW
数控全自动液压打圈Hydraulic Ring Making Machine	WR1.5-8	Φ1.5-8mm	Φ40-800mm	35米/分钟	2.2KW
数控全自动液压打圈Hydraulic Ring Making Machine	WR3-10	Φ3-10mm	Φ80-800mm	35米/分钟	4.0KW
