I.Main Features and Functions

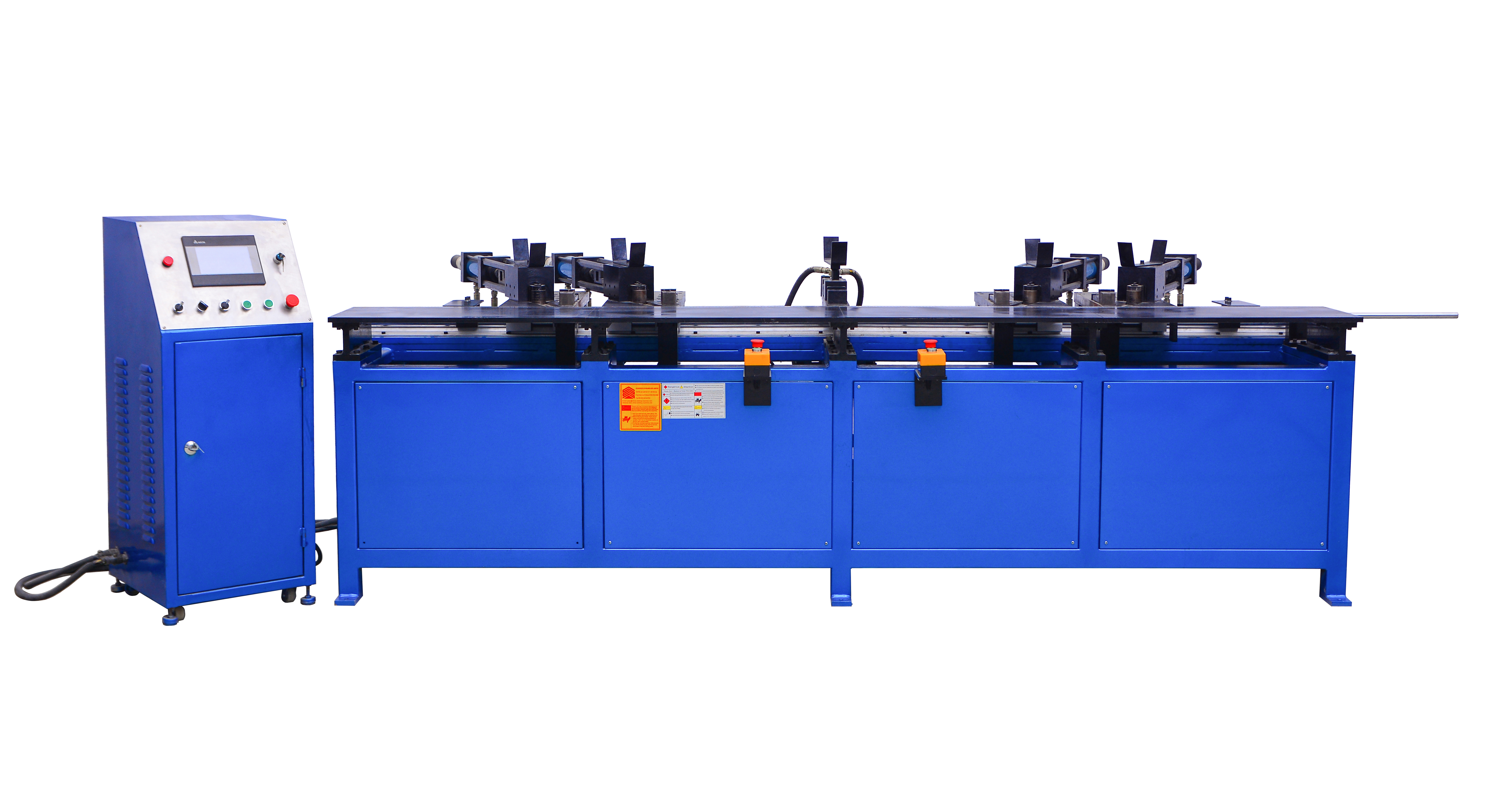

WBM Series Automatic Hydraulic Metal Wire Bending Machine is a specially designed equipment for bending metal material, such as steel, aluminium and copper or brass with round and flat shape.

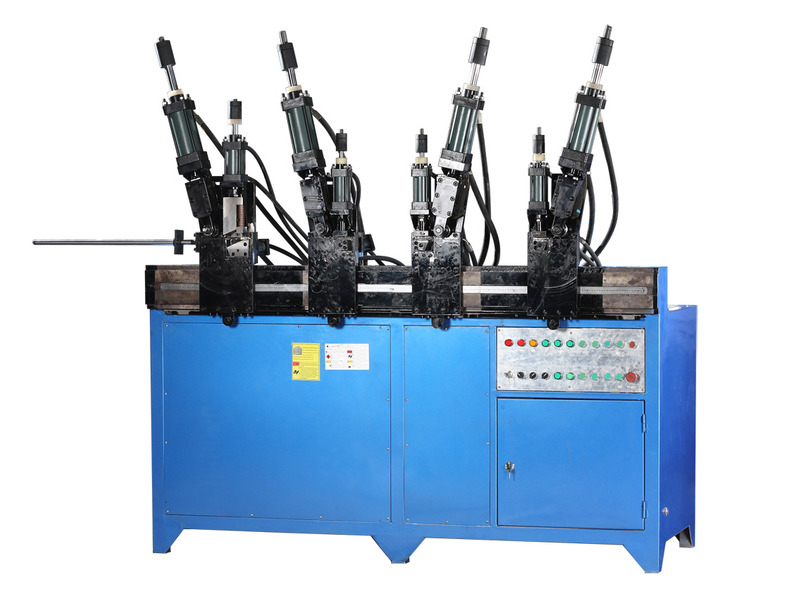

Including two types: Vertical Type Wire Bending Machine and Horizontal Type Wire Bending Machine;
It is widely used in electrical household appliances, furniture, steel wire producing industries.
High efficiency, low energy consumption, bending precision，easily installed and operate, no pollution and save labour intensity.
Besides the basic standard model, as to different wire material, and special size of wire shape, the wire bending machine can also be designed and produced specially.
Strong power, hydraulic stepwise bending, easy to adjust, can also bend many pieces of metal wire into various shape at one time, greatly improve production efficiency.
II.Main Technical Parameters
1. The Capacity ………………………… 3.75-10KVA；
2. The Wire Bending Length……………500—2200—1000mm or other special wire length；
3. The Min.Bending Size ………… 170*200mm or other special wire angle；
4. The Bending Ability…………………… 6*Φ5mm or 6*Φ10mm /Q235；
5. The Hydraulic Pressure ……………… 5-7-10Mpa；
6. The Power ………………………… 3-Phase,380-440V，50-60Hz；
