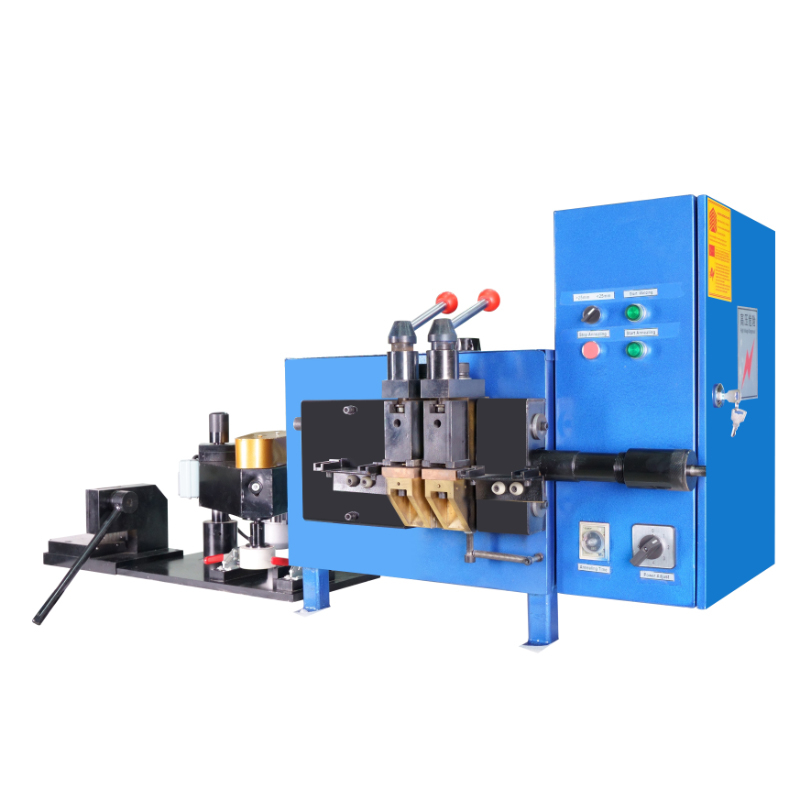

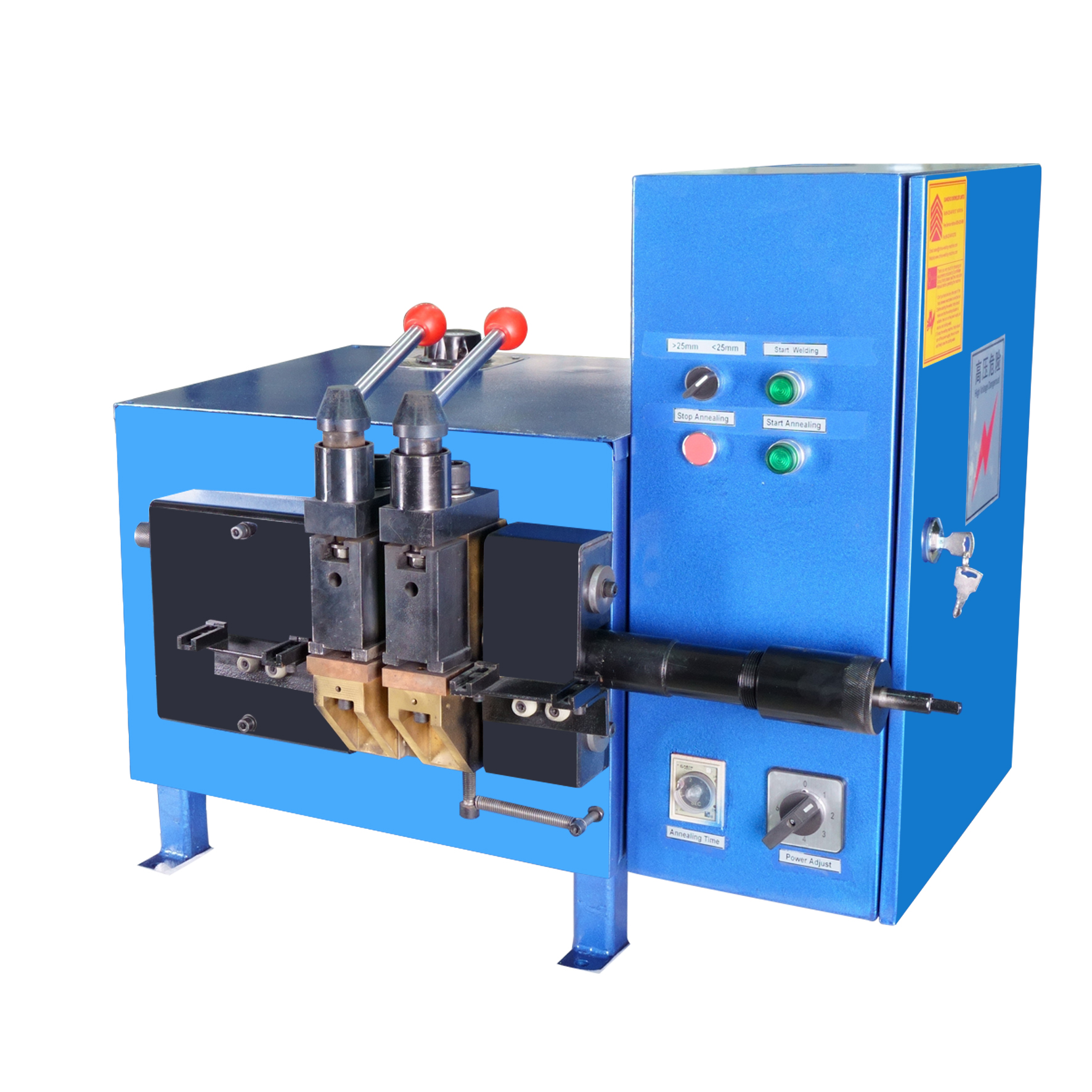

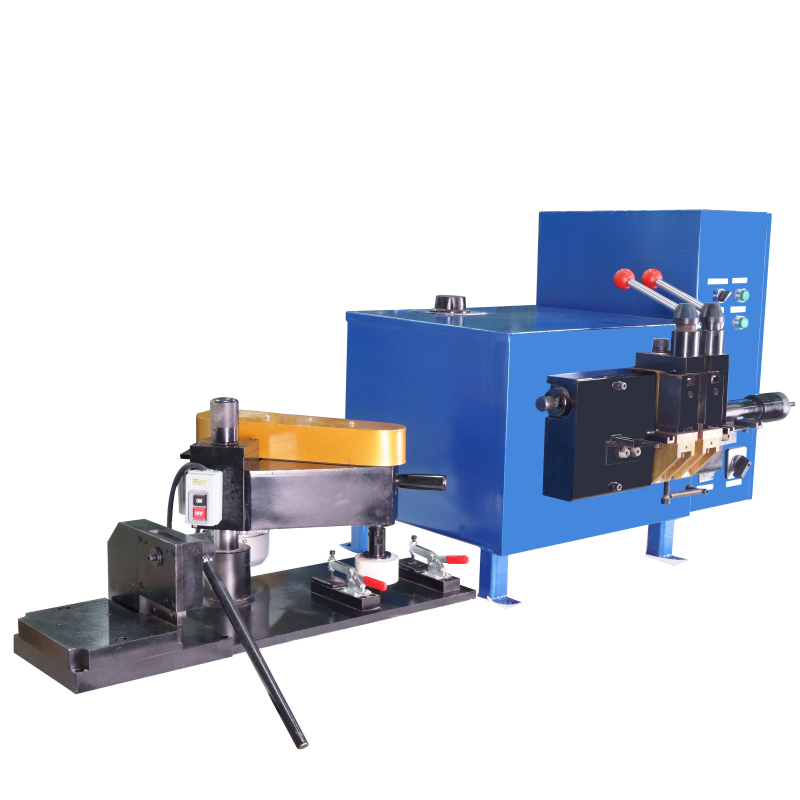

BAS-050MM Bandsaw Blade Butt Welding Machine

BAS-050MM Bandsaw Blade Butt Welding Machine

Through further research and innovation according to years of experience and suggestions from the end users basing on the German IDEAL's band saw blade welding machine, we developed this machine with our own intellectual property rights.

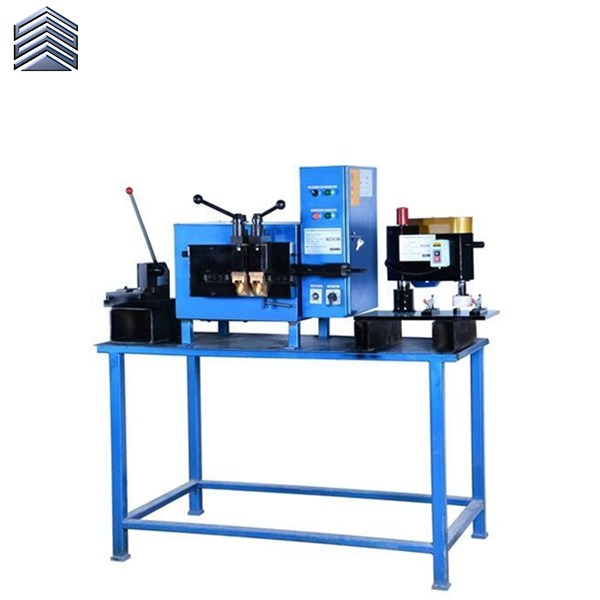

The complete set of bandsaw blade butt welding machine includes 1set of Butt Welding Machine, 1set of Movable Working Table, 1set of Bandsaw Blade Cutting Machine, and 1set of Welding Burr Grinding Machine.(can be purchased seperately)

Quantity:
Availability:





Inquire Add to Basket

Model:
BAS-050MM

bandsaw welding machine ideal bandsaw welder Bandsaw Blade Butt Welder used bandsaw blade welder for sale diy bandsaw blade welder bandsaw blade welding near me jet bandsaw blade welder chicago electric bandsaw blade welder bi-metal bandsaw blade welder

Product Description

Ⅳ.Butt Welder Main Technical Parameter

Technical Parameters		BAS-050MM
Rated Power at 50% Rated Duty Cycle		4.5KVA
Max Butt Welding Width	Wood-cutting Bandsaw Blade	3-50mm
	Bi-metal Bandsaw Blade	3-42mm
	Tungsten Alloy Bandsaws Blade	3-42mm
	Stainless Steel Bandsaw Blade	4-35mm
	H.S.S Bandsaw blade	4-35mm
	Band knives for leather and foam	4-50mm
	Steel Strip	3-50mm
Welder Approx.Weight		140KG
Packing Over Dimension		L:170CMW:70CMH:140CM
