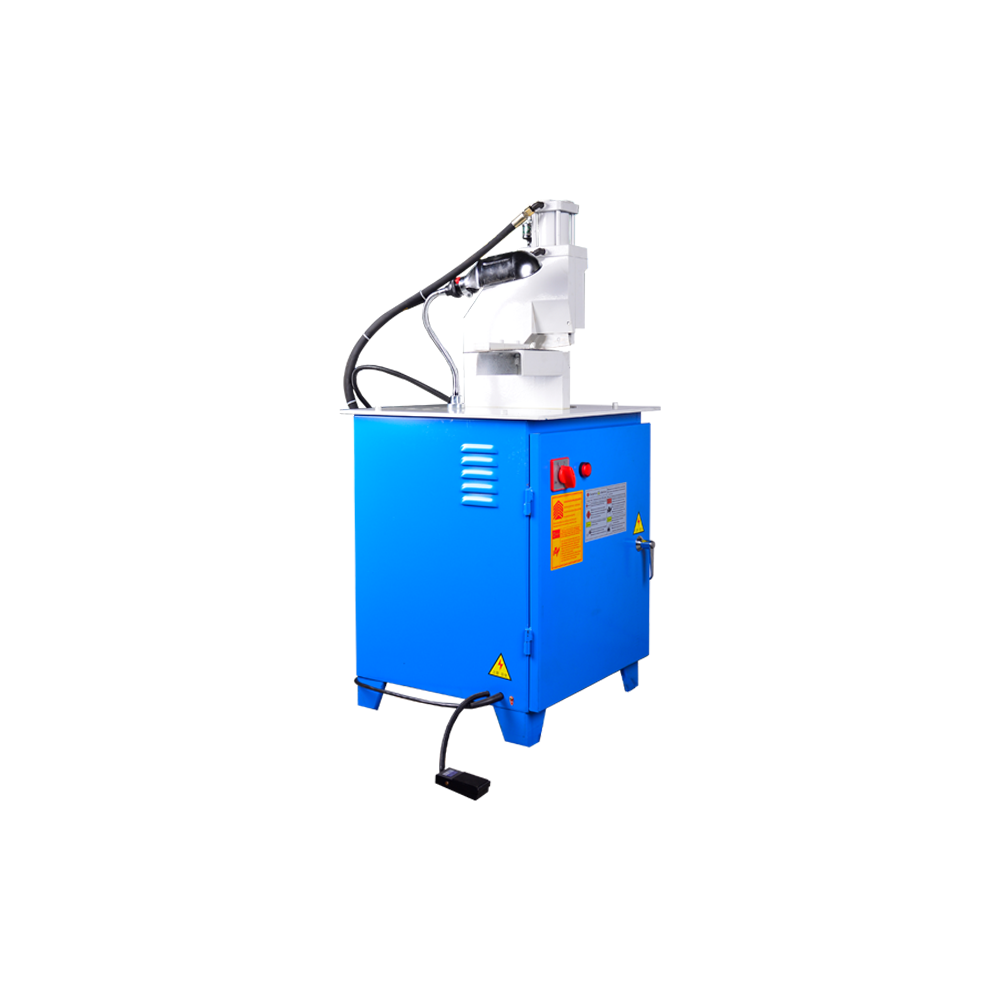

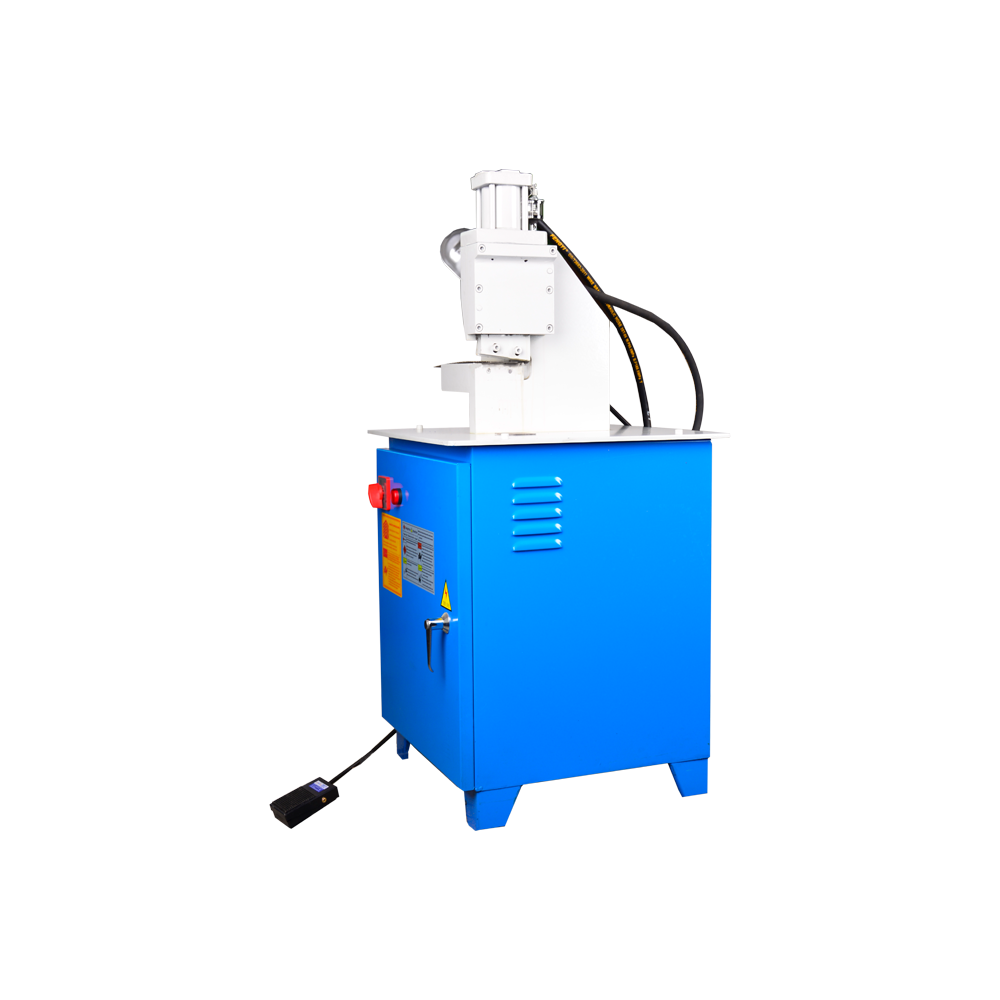

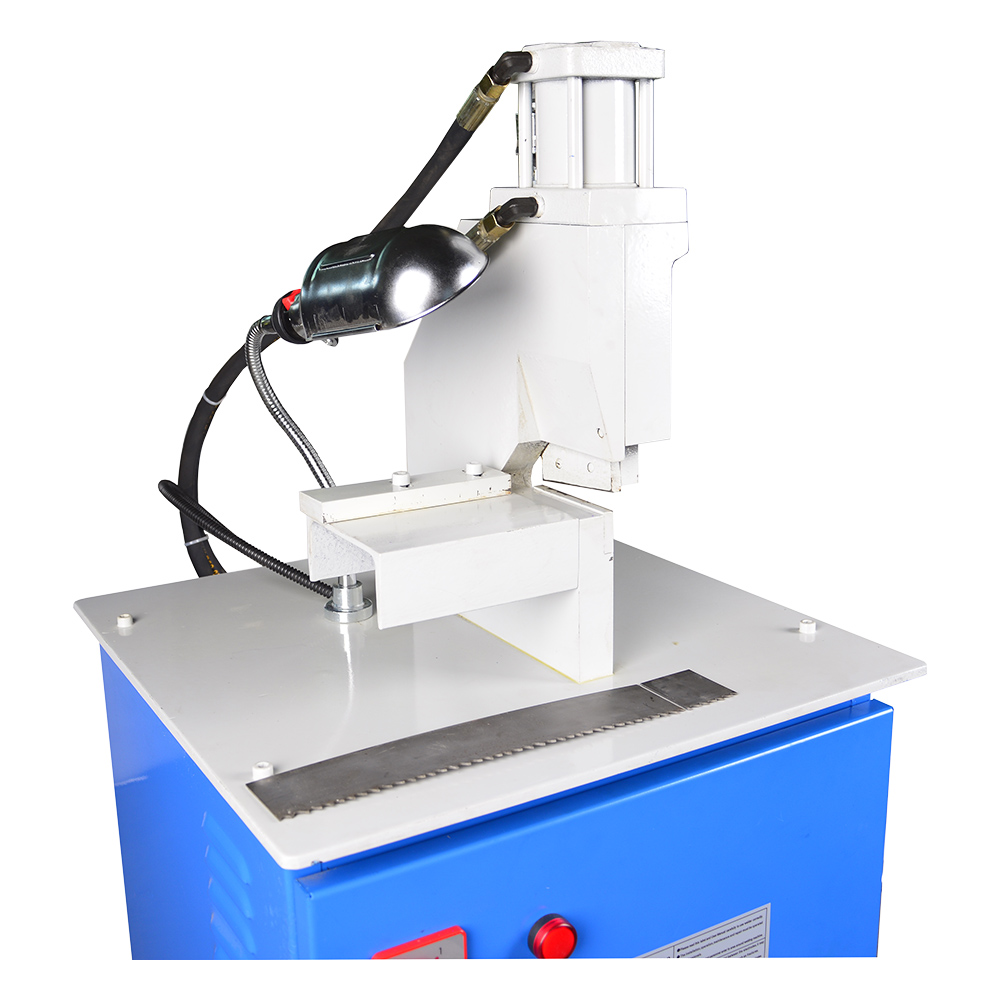

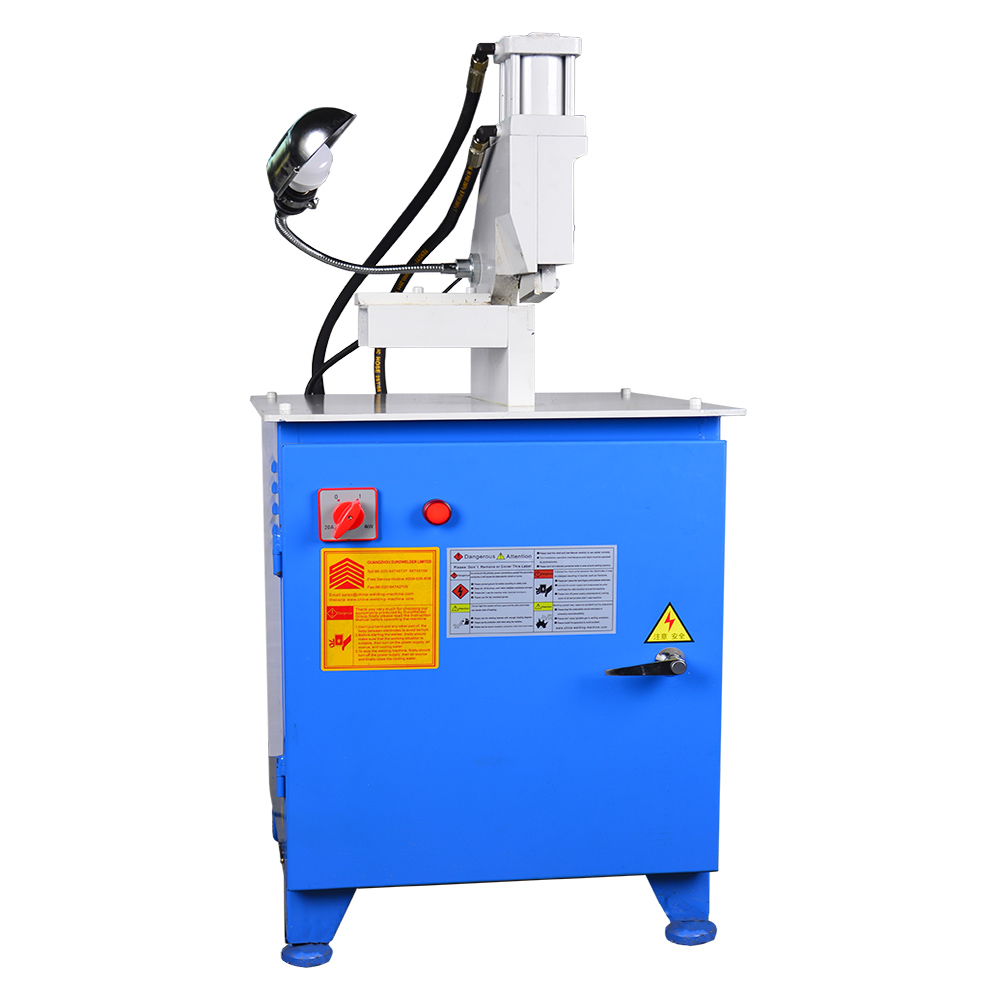

The Hydraulic Type Bandsaw Blade Cutting Machine is mainly used for mass production of bandsaw, and is especially applicable to various large saw blade processing plants and saw blade processing shops.
Compared with traditional manual type and pneumatic type saw blade cutting machines, the hydraulic type saw blade scissors, besides saving time and high efficiency and simpler structure, also more stable in operation, greater in cutting force, straighter in cut, no deformation, which will be much better for the following butt welding.
Main Specifications
Model | Max Cutting Width | Cutting Thickness | Total Motor Power | Input Voltage | Net/Gross Weight | Dimension (L*W*H) |
HBC-80MM | 80MM | 0.3-3.2mm | 0.75KW | 220V, 380V, 415V, 440V, 480V, 50/60Hz | 140/180KG | 75*55* 150CM |
HBC-100MM | 100MM |
HBC-120MM | 120MM |
HBC-150MM | 150MM | 1.0KW | 160/200KG | 80*60* 160CM |
