Main Descriptions and Advantages
Max output 1.5KW, heating steel material more than 800°C temperature within seconds and no need water cooling, and lower consumable cost, with the less weight, easy handling and small carrying handle, one better kind of portable induction heater, no flame, compare to naked fire or LGP flame heating way in the auto repairing workshop, a better way to heat the metallic material, such as bolts, nuts, screws, gears, rod, cases, bearings, driving shafts, pipes, hubs etc.
Main Application
The resistance heat is generated quickly and concentratedly by repairing the handle, so that the dent is stretched and repaired by itself.
Main Technical Parameters
Model No. | DIH-1500W |
Input Power Supply | AC 110V,220V,240V,50/60Hz |
Output Induction Frequency | 25-65kHz |
· Max Output Power | ≤2.0kW |
Power Factor | 0.99(PFC) |
Cooling Way | Air Cooling |
Continuous and Constant Heating Time | 6Minutes |
Plug Cable Length | 150CM |
Output Induction Cable Length | 80CM |

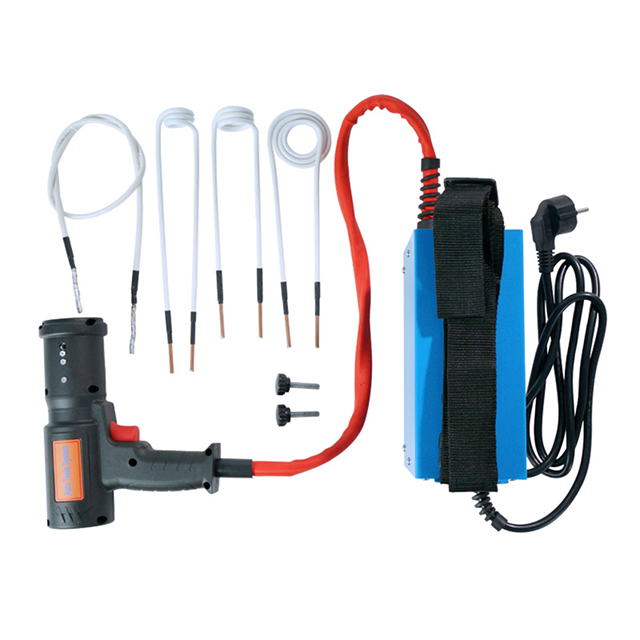

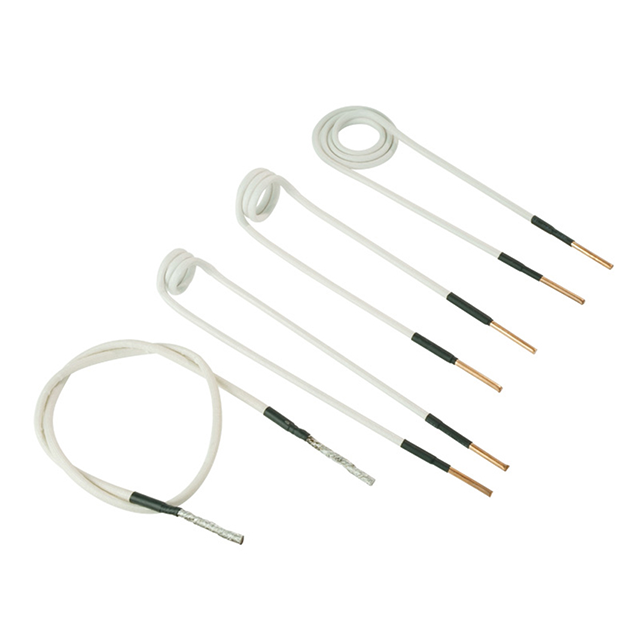

Induction Coils Diameter & Quantity | 4PCS Different Diameter |
Plug Type | Type H,Type B,Type G,Type E |
Induction Main Part | Net Weight | 2.7KG |
Dimension | 21*9*14CM |
Induction Heads Part | Net Weight | 0.5KG |
Dimension | 19*17*6.5CM |
Total Packing Weight | 4.6KG |
Total Packing Size | 41*32*12CM |
