Equipment Main Features and Functions

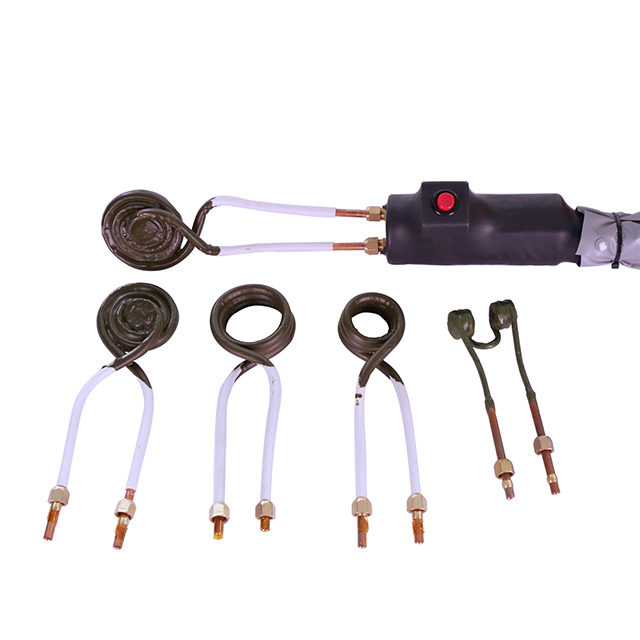

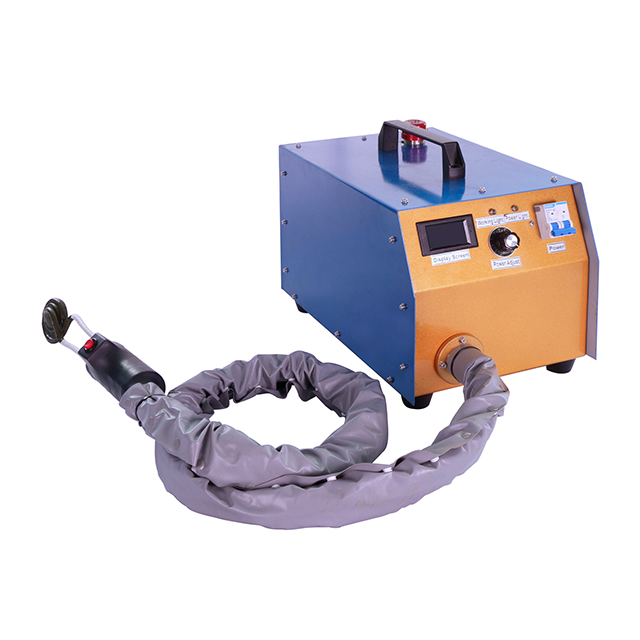

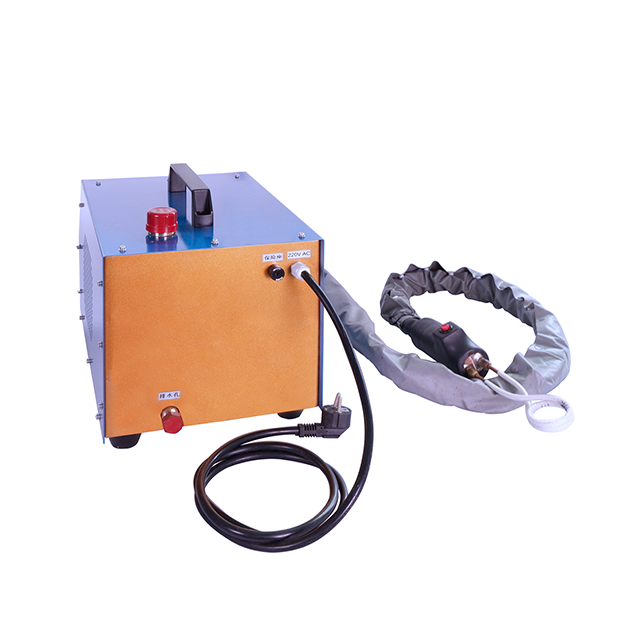

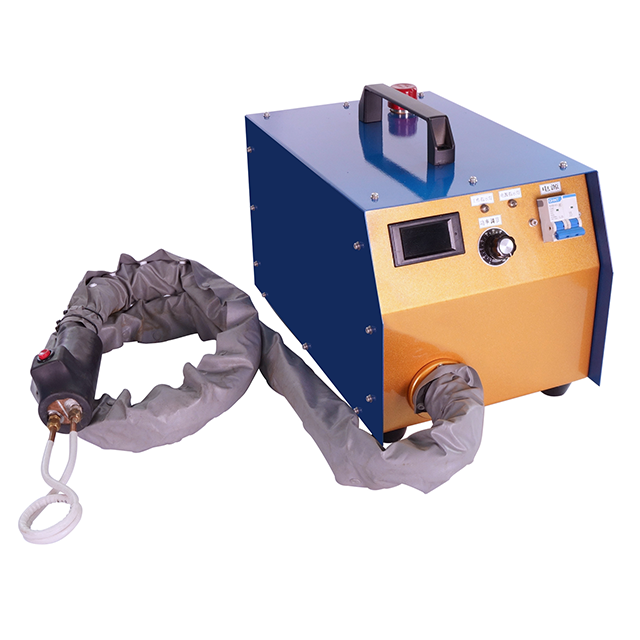

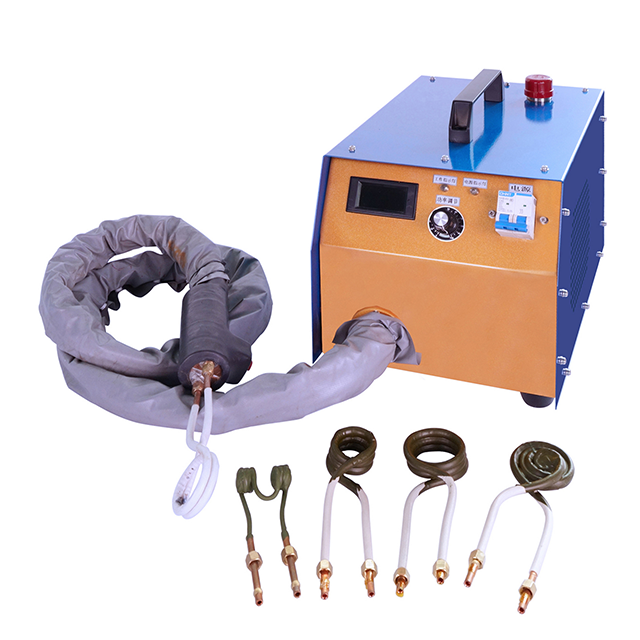

DW-2KW Portable Induction Heater is one kind of portable and mobile induction heater integrated water and air cooling system.To heat different kind of workpiece,the induction coiler is changeable and replaceable.
Can be used for heating and brazing various material,such as steel and copper, can also heat and solder different kind of products,such as steel round rod and flat sheet,copper and brass tube,bolts,nuts,shafts,bearings,round steel,sheet,and son on.
Especially used for soldering and brazing the copper tube when install the air condition,no need to use the gas fire again.
Main Technical Parameters
Model No. | DW-2KW |
Product Quality | Premium |
Protection Level | IP22 |
Certificate and approvement | CE(EMC,LVD),UL,CCC,Rohs |
Input Voltage | 220V/110V, AC, 50/60Hz |
Max Output Power | 2.5KW |
Stable Output Power | 2.0KW |
Output Working Frequency | 18-60kHz |
Standard Induction Cable Length | 2Meter (Length Customized) |
Built-in Water Tank Volume | 3.10Lite (can contact bigger external water water system) |
Plug Type | H Type,B Type,G Type,E Type |
Main Induction Generator | Net Weight | 16KGS |
Handle Induction Head | Net Weight | 3KGS |
Total Weight | 22.2KGS |
Total Size and Dimension | L:40CM*W:25CM*H:27CM |
