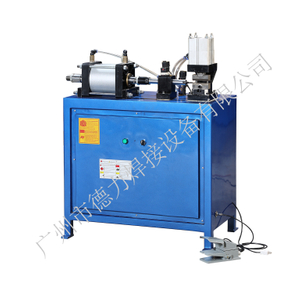

HPF Series Automatic Hydraulic Type Pipe End Forming Machine

Main Features and Functions
1.HPF Series Automatic Hydraulic Type Pipe End Forming Machine,also name as “Automatic Hydraulic Type Pipe End Flaring and Swaging Machine”,mainly used for the copper tube and aluminium tube,or steel tube end reducing,enlarging,flaring and swaging,and so on.
2.Adopting the compact and solid steel machinery frame structure,driven by the oil cylinder and hydraulic pressure station with cooling system,the performance is more stable and the rate of finished product is more higher.
3.Using the Japanese imported linear guide rail and PLC control system, the operation is more easy, the function is more stable, and the product consistency is much more better.
4.One machine with multiple functions:Just by replacing the mold,can form the tube end into different shapes,can meet the customer’s diversified demands.

Quantity:
Availability:





Inquire Add to Basket

Model:
HPF
Brand:
deli

Product Description

Main Features and Functions

1.HPF Series Automatic Hydraulic Type Pipe End Forming Machine,also name as “Automatic Hydraulic Type Pipe End Flaring and Swaging Machine”,mainly used for the copper tube and aluminium tube,or steel tube end reducing,enlarging,flaring and swaging,and so on.

2.Adopting the compact and solid steel machinery frame structure,driven by the oil cylinder and hydraulic pressure station with cooling system,the performance is more stable and the rate of finished product is more higher.

3.Using the Japanese imported linear guide rail and PLC control system, the operation is more easy, the function is more stable, and the product consistency is much more better.

4.One machine with multiple functions:Just by replacing the mold,can form the tube end into different shapes,can meet the customer’s diversified demands.

Main Technical Parameters

型号 Model No.		HPF-10MM	HPF-20MM	HPF-30MM	HPF-40MM	HPF-50MM
主要技术参数 Main Parameters
最大加工管径 Max Processing Tube Diameter	铜管 Copper Tube	Ø10MM	Ø20MM	Ø30MM	Ø40MM	Ø50MM
	铝管 Al Tube	Ø8MM	Ø18MM	Ø28MM	Ø38MM	Ø48MM
	铁管 Steel Tube	Ø6MM	Ø12MM	Ø20MM	Ø28MM	Ø35MM
油缸行程 Oil Cylinder Stroke		行程可调：0-110MM(Adjustable)
油缸速度 Oil Cylinder Speed		110MM Per 1-2Second		110MM Per 2-3Second
设备外形尺寸(LWH) Equipment Dimension		10081138CM	110101160CM	130110170CM	140110180CM	150120180CM
设备重量 Machine Weight		660KG	780KG	880KG	990KG	1100KG
