Main Characteristics and Applications

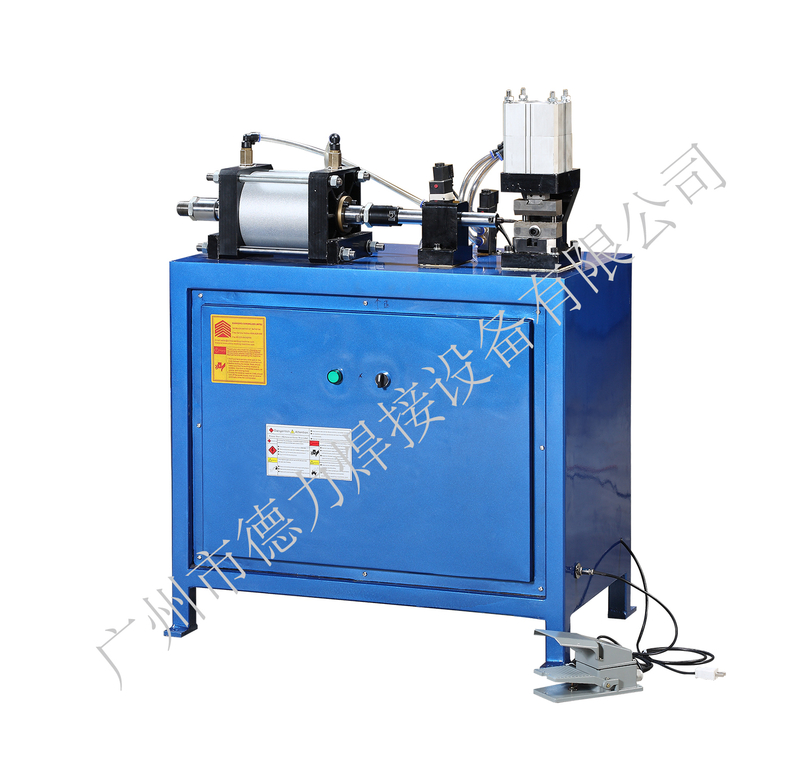

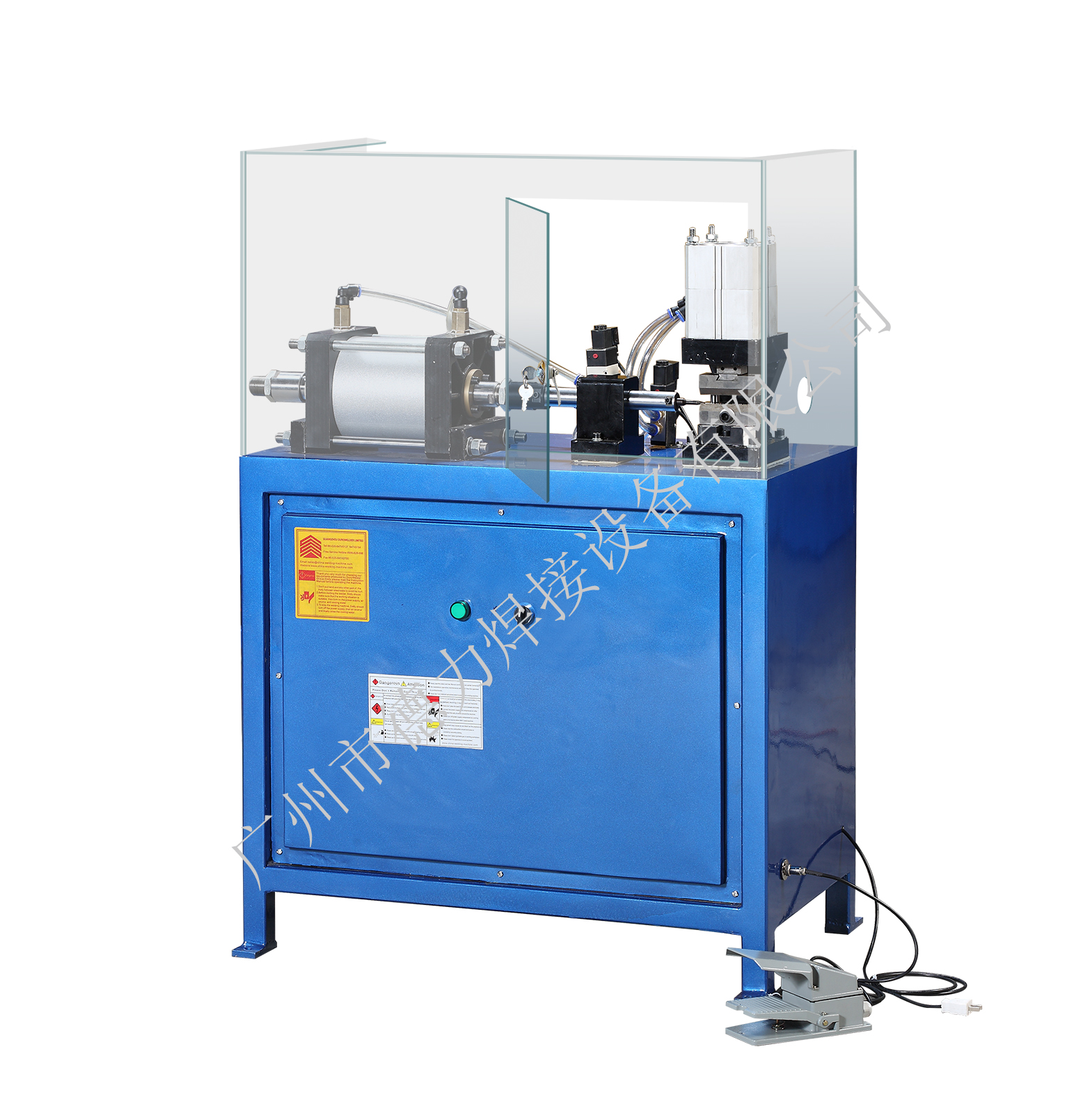

Punching Type Pipe End Forming Machine is mainly used for make the copper tube or aluminum tube end Enlarged,Expanded,Flared,Swaged,Reduced,Necked or Sealed,to meet the need of the industries of Air Conditioning,Refrigerators,Freezers,Cold Room and other Refrigeration Industries.
According to the needs of different production process and machine structure, the equipment can be classified as 1-Working Station Pipe End Forming Machine,2-Working Stations Pipe End Forming Machine,3-Working Stations Pipe End Forming Machine,Multi-Station Pipe End Forming Machine, and so on.
Main Technical Parameters
设备加工工位数量 Quantity of Working Station | 1-工位 1-Working Station | 2-工位 2-Working Station | 3-工位 3-Working Station |
铜管与铝管的最大加工直径 Max Copper&Al Pipe Diameter | 35mm | 37mm | 40mm |
最大管子壁厚 Max Pipe Thickness | 3.0mm | 3.5mm | 4.0mm |
生产加工效率 Producing and Processing Efficiency | 2-5秒/件 2-5Seconds/PC | 3-8秒/件 3-8Seconds/PC | 5-10秒/件 5-10Seconds/PC |
固定与驱动方式Driving Mode | 气动或者液压 Pneumatic or Hydraulic | 气动+液压Pneumatic + Hydraulic | 液压Hydraulic |
加工方式Processing Mode | 冷锻 或者 冷镦+旋压 Cold-forging or Cold-forging+Spinning | 冷镦 Cold Forging | 冷镦 Cold Forging |
输入电压Input Voltage | 220V / 380V / 440V / 480V, 50/60Hz |
设备重量Machine Weight | 250KG | 350KG | 450KG |
