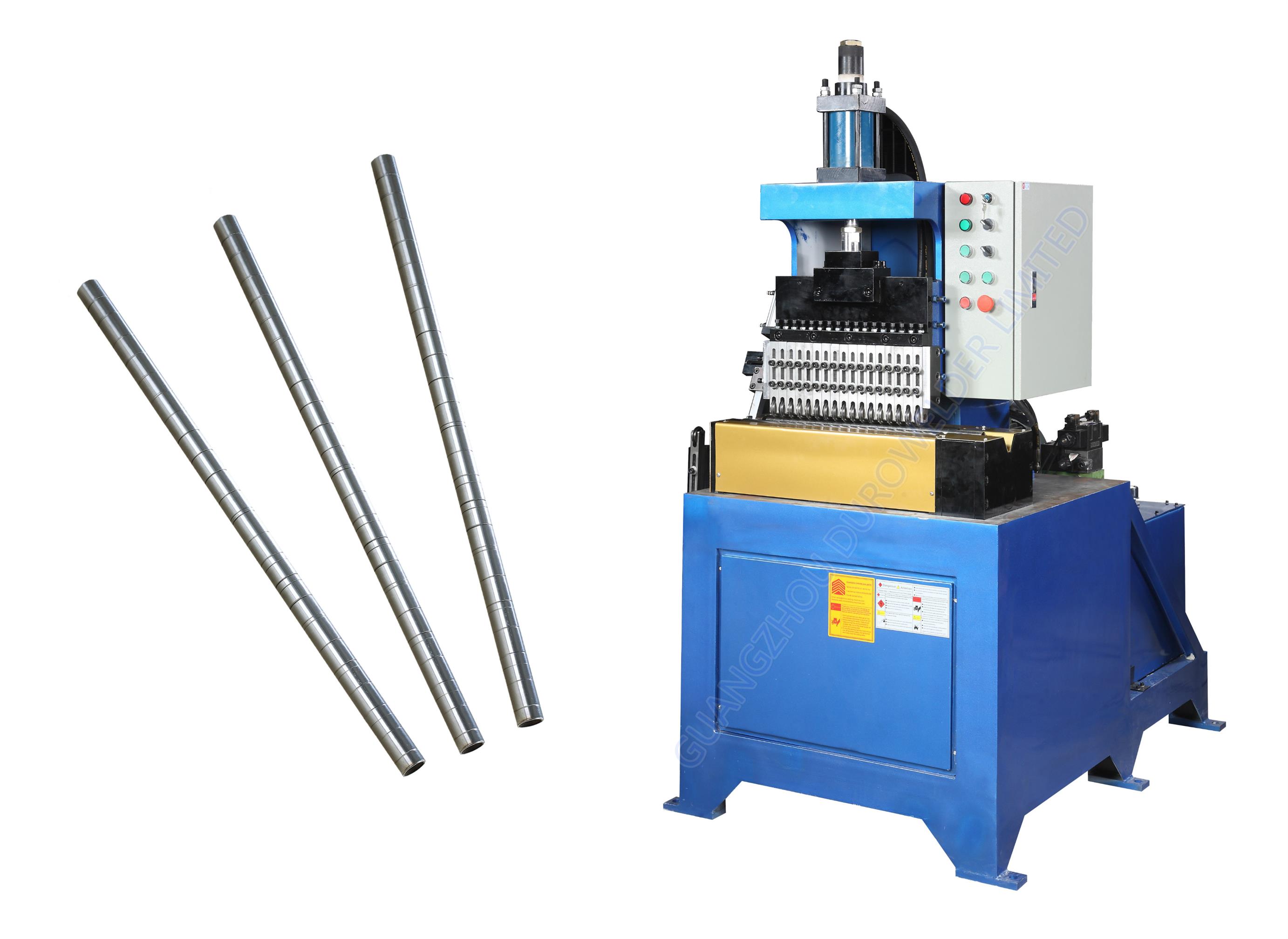

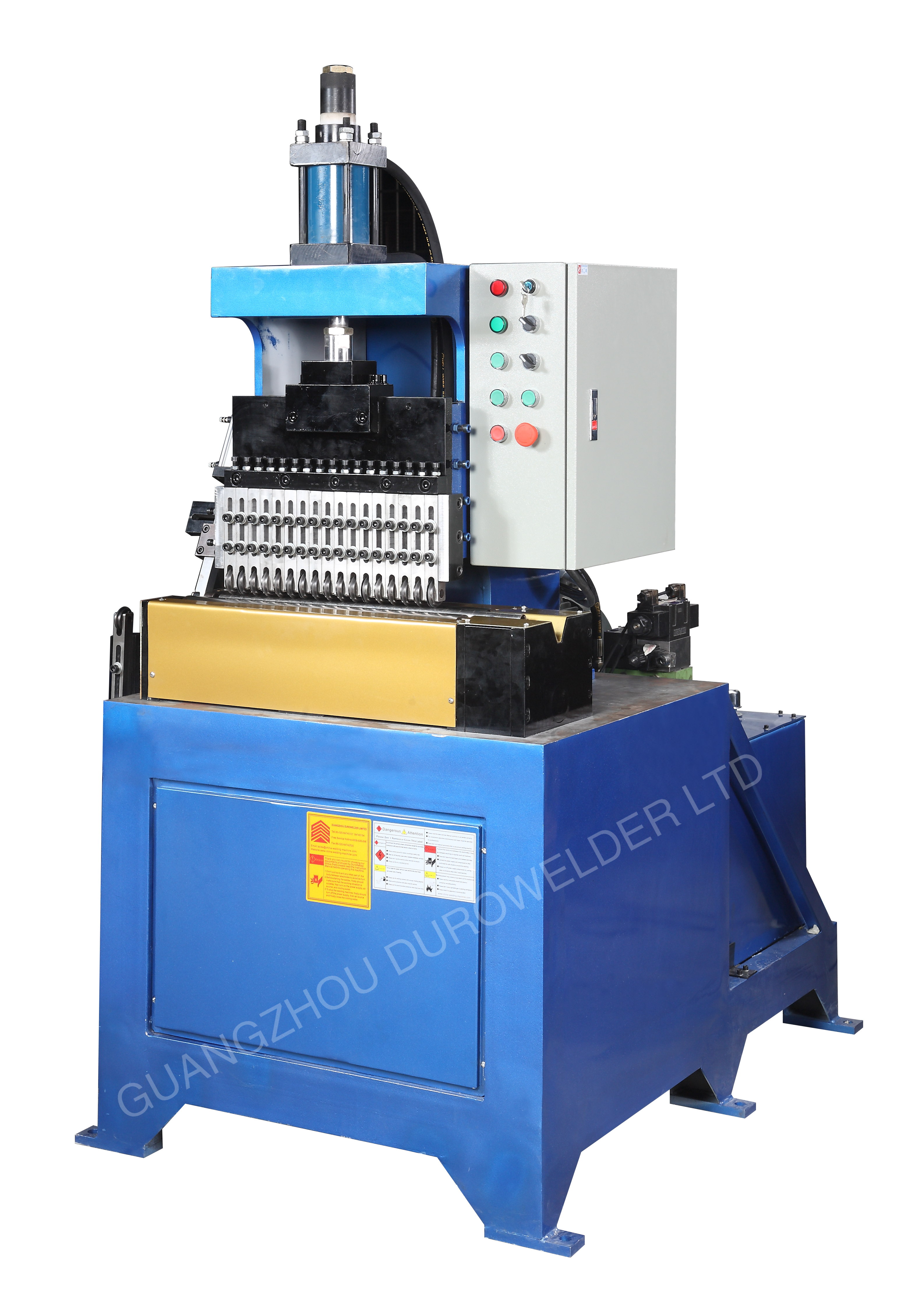

PGM Series Automatic Rolling Type Hydraulic Pipe Grooving Machine

Features of the Machine
Roll Groover,also called Steel Tube Bamboo Joint Forming Machine,
Channeling Machine,is mainly used for processing bamboo joint and groove on metal tube, widely applied in the production of the rack, shelf, wardrobe frame, hardware appliances, lighting, decoration, handicrafts,Home Furnishing,and so on.
The equipment adopts hydraulic cylinder positioning,motor driven rotation, machinery gear drive and PLC microcomputer control,structure compact,
operation stable,convenient maintenance,high precision,simple operation:only need to load the round tube into the two rolls,then OK.It is an ideal equipment for tube beautification processing.
According to customer needs,different size of metal tube,different bamboo joint pitch and groove shape, also can produce the machine specially with different rolling mould and channeling cutter.

Quantity:
Availability:





Inquire Add to Basket

Model:
PGM
Brand:
Deli

Pipe Grooving Machine Roll Groover Steel Tube Bamboo Joint Forming Machine channeling machine

Product Description

Features of the Machine

Roll Groover,also called Steel Tube Bamboo Joint Forming Machine,

Channeling Machine,is mainly used for processing bamboo joint and groove on metal tube, widely applied in the production of the rack, shelf, wardrobe frame, hardware appliances, lighting, decoration, handicrafts,Home Furnishing,and so on.

The equipment adopts hydraulic cylinder positioning,motor driven rotation, machinery gear drive and PLC microcomputer control,structure compact,

operation stable,convenient maintenance,high precision,simple operation:only need to load the round tube into the two rolls,then OK.It is an ideal equipment for tube beautification processing.

According to customer needs,different size of metal tube,different bamboo joint pitch and groove shape, also can produce the machine specially with different rolling mould and channeling cutter.

主要技术参数

Main Technical Parameters

额定电压Rated Voltage	380V or Customized AC 3PH 50/60Hz
额定功率Rated Power	4.4KW
工作气压 Input Air Pressure	More than 0.2Mpa
管子加工长度 Pipe Length	750mm, 1000mm, 1500mm
加工速度 Producing Speed	20-30Pipes /Min
外形尺寸Overall Dimensions	130cm100cm190cm
设备重量 Machine Weight	750Kg
