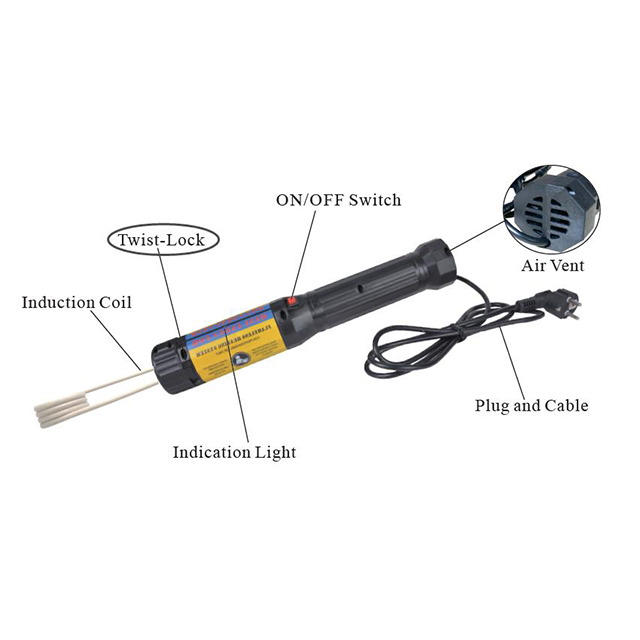

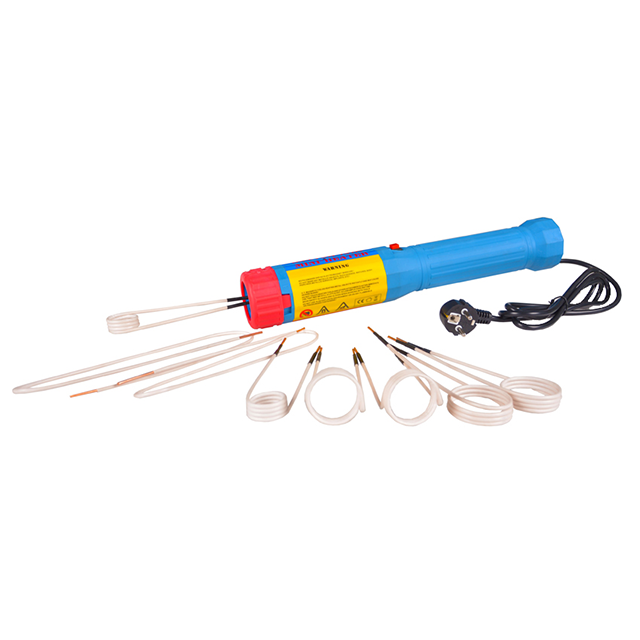

Equipment Main Characteristics
The main advantage is that if heated by this device, it is totally flameless, comparing with traditional way of heating by fire, it is much safer and of higher work efficiency, no need to worry the harm to the adjacent area, no need to avoid plastic, fiber and other flammable substances.
Light weight, do not need water cooling, very easy to use.
Within around 30 seconds, it can heat a 20mm diameter bolt to a temperature above 300ºC, maximum temperature can reach around 750ºC.
USA Imported advanced components, European technology, made in China, more stable and reliable performance.
Main Application
This device adopt Electro-Magnetic induction theory, can fast heat small metal parts on auto or other kind of machines. Mainly used for heating Rusted, Frozen, Corrosive Bolt, Nut, Fasteners, Suspension Nut, Gears, Pulley, and Bearings, etc. Meanwhile, it also can help remove stickers on cars.
Main Technical Parameters
Model Number | KIA-1.1KW Plus |
Rated Voltage | 110V / 220V / 230V AC 50/60Hz |
Rated Output Power | 1100W |

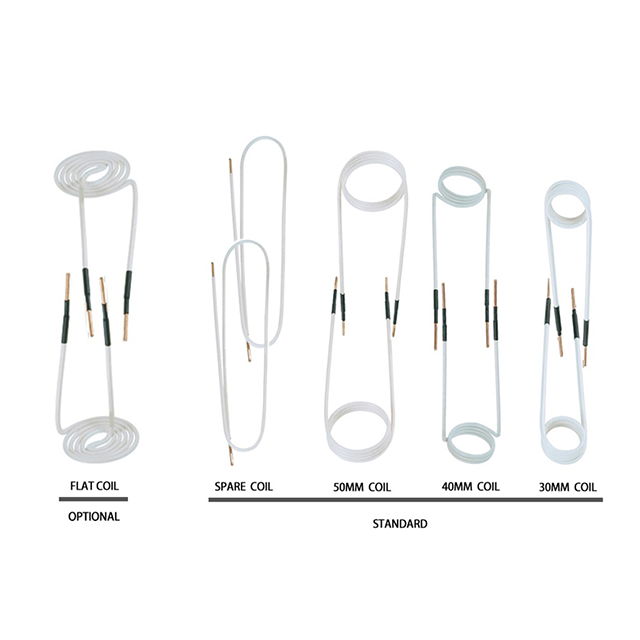

Induction Coil Diameter & Quantity | Ø30mm*2PCS, Ø40mm*2PCS, Ø50mm*2PCS, Spare Wire*2PC Flat Coil*2PC(Optiomal) |
Heating Bolt Diameter | Ø5-40mm |
Plug Type | Type H, Type B, Type G, Type E, Type A |
Approval Certificate | CE(EMC,LVD),CCC, Available for COC, POVC |
Net Weight | 1.3KG |
Gross Weight | 3.3KG |

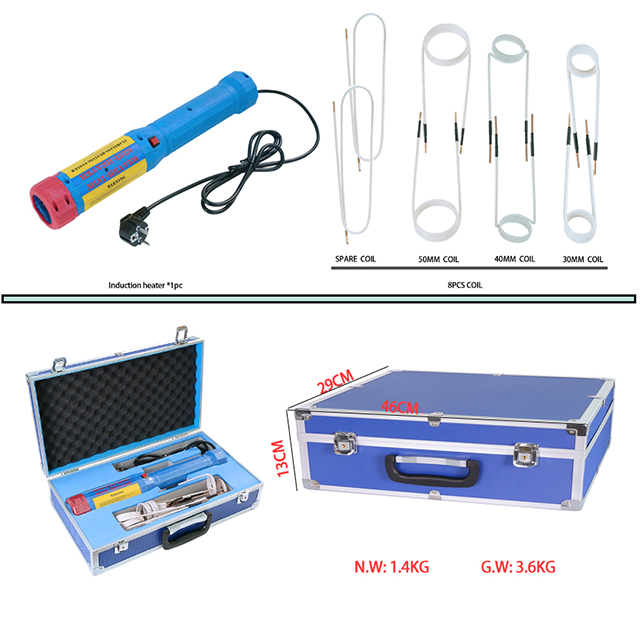

Packing Dimension | 45CM * 28CM * 13CM |
