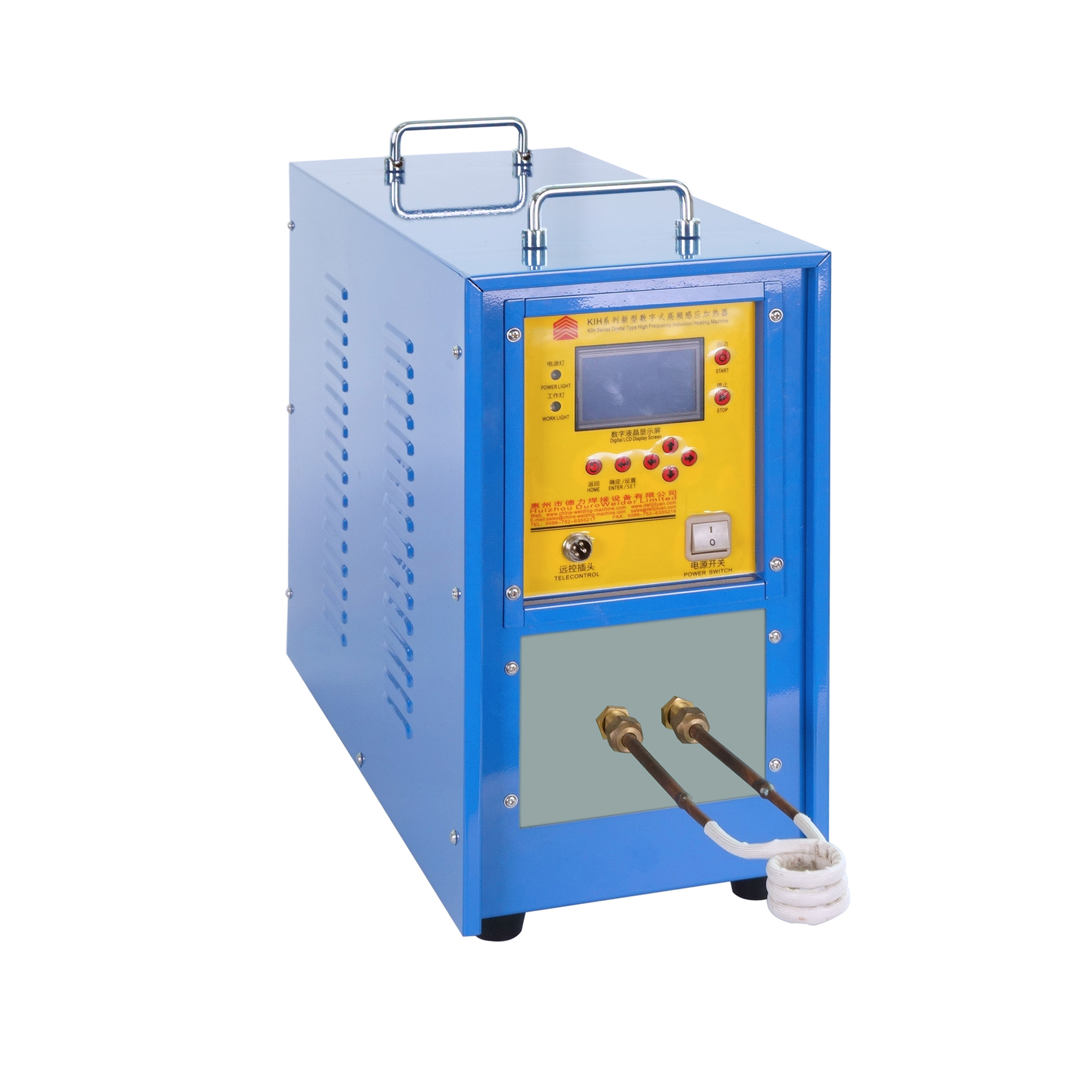

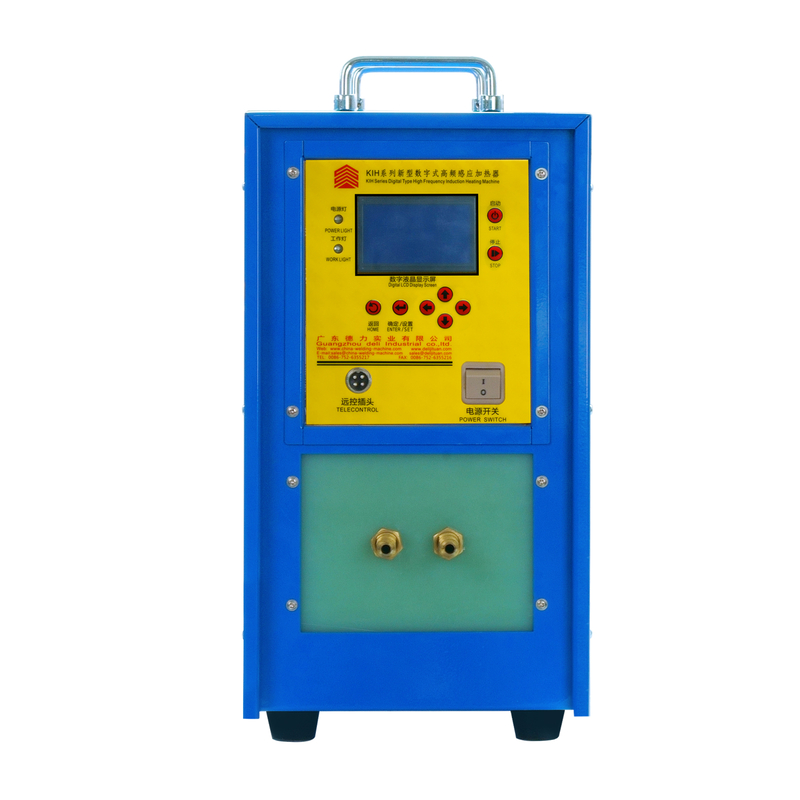

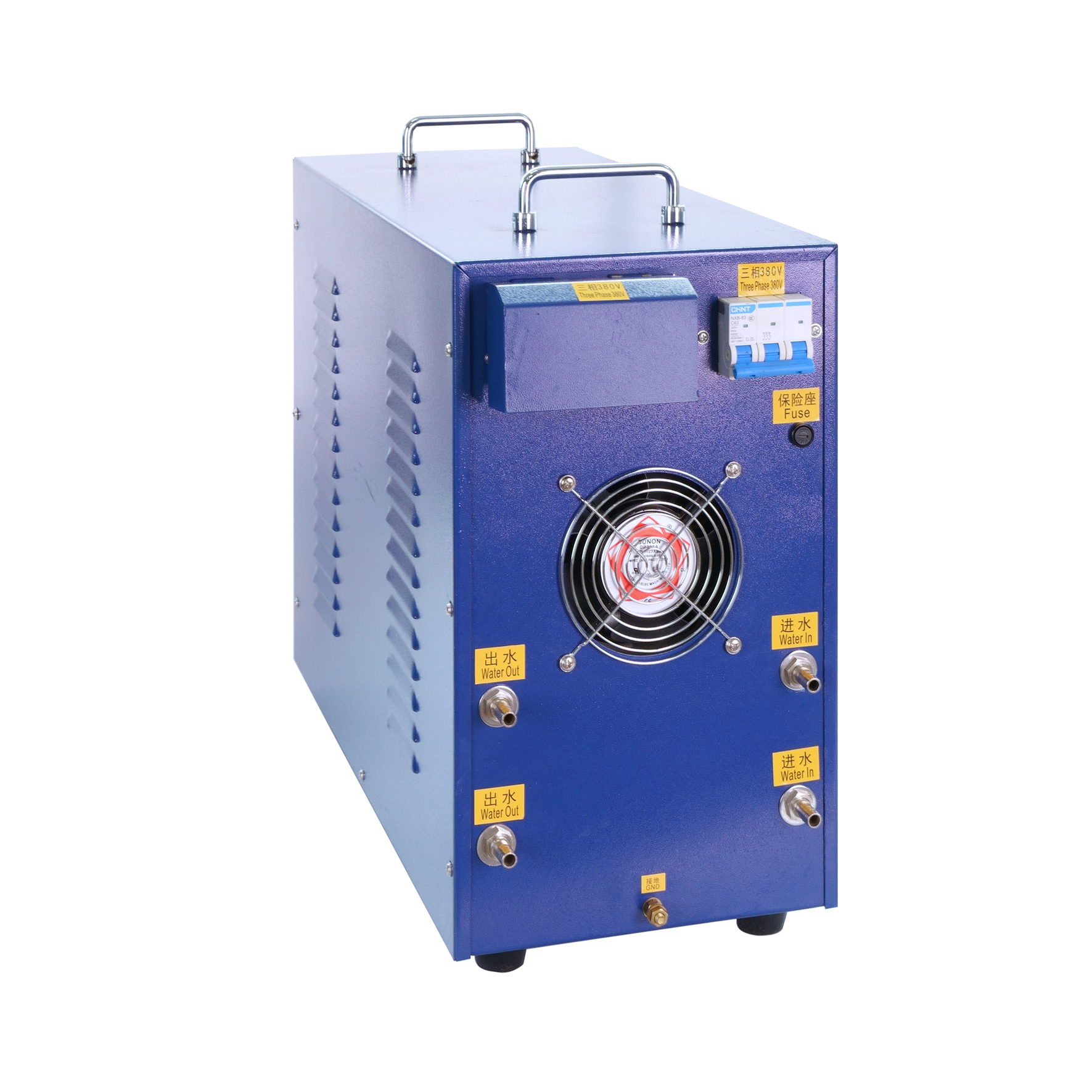

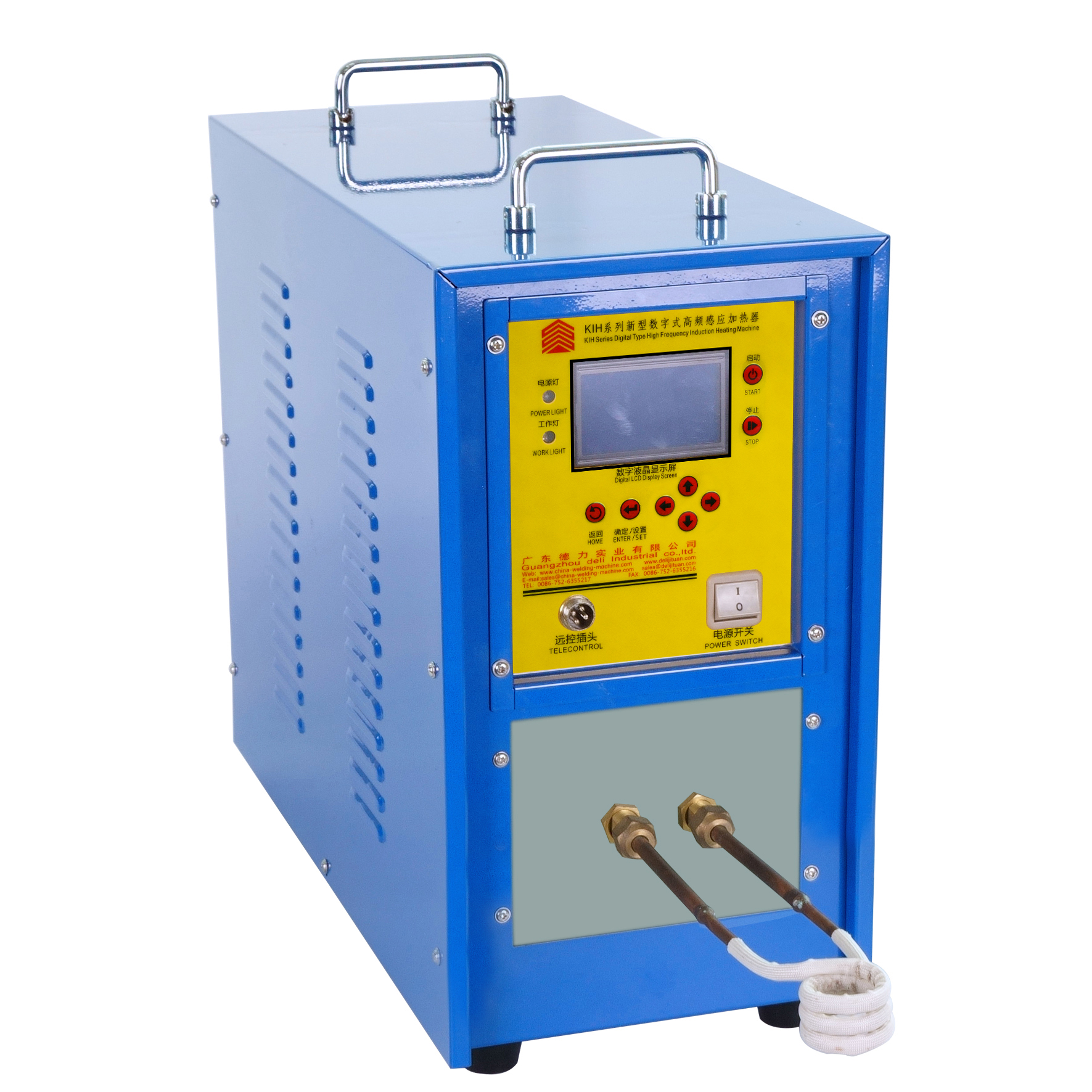

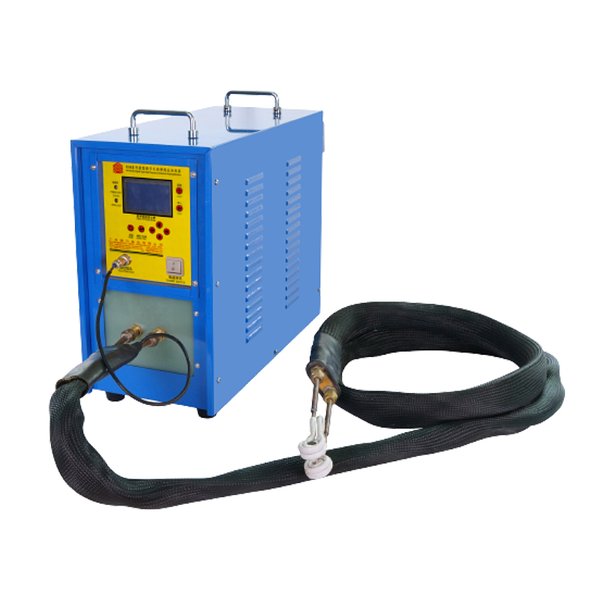

KIH Series High Frequency Induction Heating Machine

KIH Series High Frequency Induction Heating Machine

Main Characteristics
1、Adopted European MOSFET, IGBT solid power module and advanced inverter technology.
2、Can set the time of three stages: “Heating”, “Maintain Temperature”, “Cooling”, separately. Furthermore, the function of adjusting the power of ” Maintain Temperature” independently will be effective to control the heating curve and the heating temperature.
3、Include “over-current, over voltage, water shortage, lack of phase and other fault state self-protected and display”, also some other necessary functions which will ensure our heater’s higher reliability and durability.
4、Easily operate and the output voltage is safe for operator.
Hundred Percent Rated Duty Cycle design, can work 24hours continuously.

Quantity:
Availability:





Inquire Add to Basket

Model:
KIH
Brand:
Deli

KIH Series HF Induction Heater High-Speed Heating System Precision Thermal Control Solid-State Power Supply Automated Frequency Tuning Metal Hardening Equipment Jewelry Welding Machine Energy-Efficient Induction Compact Industrial Heater

Product Description

KIH Series High Frequency Induction Heating Machine

Main Characteristics

1、 Adopted European MOSFET, IGBT solid power module and advanced inverter technology.

2、 Can set the time of three stages: “Heating”, “Maintain Temperature”, “Cooling”, separately. Furthermore, the function of adjusting the power of ” Maintain Temperature” independently will be effective to control the heating curve and the heating temperature.

3、 Include “over-current, over voltage, water shortage, lack of phase and other fault state self-protected and display”, also some other necessary functions which will ensure our heater’s higher reliability and durability.

4、 Easily operate and the output voltage is safe for operator.

Hundred Percent Rated Duty Cycle design, can work 24hours continuously.

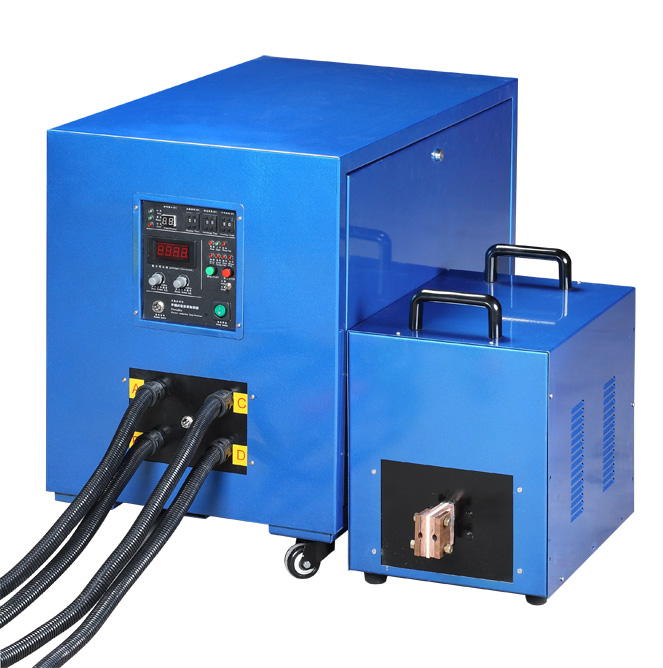

型号 Type	KIH-5A	KIH-15A	KIH-15AB	KIH-25A	KIH-25AB	KIH-40AB	KIH-60AB	KIH-80AB	KIH-100AB	KIH-120AB
最大振荡功率 Max Fluctuating Power	5KVA	15KVA	15KVA	25KVA	25KVA	40KVA	60KVA	80KVA	100KVA	120KVA
振荡频率 Fluctuating Frequency	10-250KHZ	30-100KHZ	30-100KHZ	30-80KHZ	30-80KHZ	30-80KHZ	30-80KHZ	30-80KHZ	30-80KHZ	30-80KHZ
加热电流 Heating Current	100-500A	200-600A	200-600A	200-1200A	200-1200A	200-1800A	400-3200A	400-3800A	400-4200A	400-4600A
工作电压 Input Voltage	单相(Single Phase),220V, 50HZ-60HZ	单相(Single Phase),220V,50HZ-60HZ	单相(Single Phase),220V,50HZ-60HZ	三相(3-Phase),380V,50HZ-60HZ	三相(3-Phase),380V,50HZ-60HZ	三相(3-Phase),380V,50HZ-60HZ	三相(3-Phase),380V,50HZ-60HZ	三相(3-Phase),380V,50HZ-60HZ	三相(3-Phase),380V,50HZ-60HZ	三相(3-Phase),380V,50HZ-60HZ
冷却水量 The Flow Rate of Cooling Water	0.2Mpa，6L/Min	0.2Mpa，6L/Min	0.2Mpa，6L/Min	0.2Mpa，6L/Min	0.2Mpa，6L/Min	0.2Mpa，7L/Min	0.2Mpa，9L/Min	0.2Mpa，9L/Min	0.2Mpa，12L/Min	0.2Mpa，12L/Min
水温保护点 Water Temperature Protection Point	40°C	40°C	40°C	40°C	40°C	40°C	40°C	40°C	40°C	40°C
重量Net Weight(Kg)	一体机(Integrated):16Kg	一体机(Integrated):21Kg	主机(Main Part):10Kg; 分机(Transformer Part):13.5Kg.	一体机(Integrated):28.5Kg	主机(Main Part):18.5Kg; 分机(Transformer Part):13.5Kg.	主机(Main Part):30Kg; 分机(Transformer Part):35Kg.	主机(Main Part):65Kg; 分机(Transformer Part):43Kg.	主机(Main Part):45Kg; 分机(Transformer Part):70Kg.	主机(Main Part):65Kg; 分机(Transformer Part):70Kg.	主机(Main Part):65Kg; 分机(Transformer Part):73Kg.
外形尺寸 Dimension (mmmmmm)	180330410mm;	460200385mm;	主机(Main Part):460200385mm; 分机(Transformer Part):315200350mm.	480200385mm;	主机(Main Part): 480240400mm; 分机(Transformer Part):315200350mm.	主机(Main Part): 556280470mm; 分机(Transformer Part):360265365mm.	主机(Main Part):800470560mm; 分机(Transformer Part):500304402mm.	主机(Main Part):500304402mm; 分机(Transformer Part):800470560mm.	主机(Main Part):800470560mm; 分机(Transformer Part):800470560mm.	主机(Main Part):800470560mm; 分机(Transformer Part):850470560mm.
