Main Features
1. High power, low frequency and good diathermancy.Mainly used for heating forging,heating melting,heating treating various metal material.
2. The absolute load merit rate design, 100% duty cycle and 24 hours continuous work.
3. Small size,high efficiency, economize on power, easily installed and simply operating.
4. Adopted IGBT inverting device tracks frequency automatically.
5. Complete protection from over voltage, over current, lack of water, phase fail, overheating, etc.
6. Manual or automatic regulating,enhances the workpiece heating quality,the heating repeatability and the continuity.
Main Technical Parameters
型号Type | 输入电压The input voltage | 输出最大功率The max output power | 振荡频率Fluctuating frequency | 冷却水压The pressure of cooling water | 主机/分机重量The main/ Extension weight | 进水水温The input water temperature |

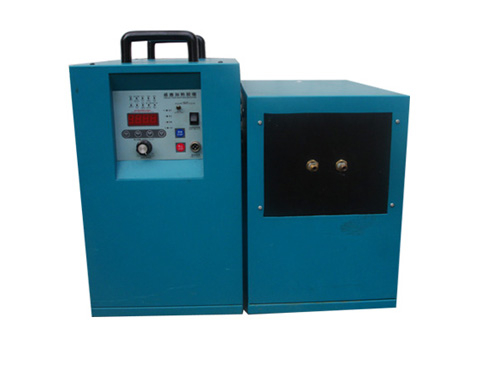

KIM-15AB | 3- phase, 380-440V | 15KW | 1-20KHZ | 0.02 MPA | 20kg/ 30kg | <40℃ |
KIM-25AB | 3- phase, 380-440V | 25KW | 1-20KHZ | 0.02 MPA | 28kg/ 30kg | <40℃ |

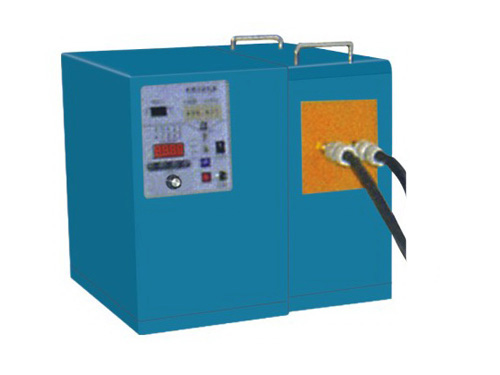

KIM-35AB | 3- phase, 380-440V | 35KW | 1-20KHZ | 0.03 MPA | 43kg/ 50kg | <40℃ |
KIM-45AB | 3- phase, 380-440V | 45KW | 1-20KHZ | 0.03 MPA | 50kg/ 55kg | <40℃ |

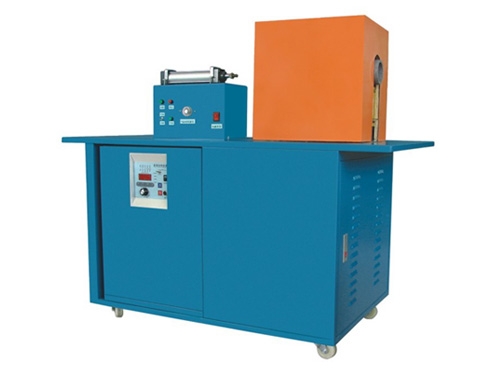

KIM-70AB | 3- phase, 380-440V | 70KW | 1-20KHZ | 0.05 MPA | 70kg/60kg | <40℃ |
KIM-90AB | 3- phase, 380-440V | 90KW | 1-20KHZ | 0.05 MPA | 75kg/65kg | <40℃ |
KIM-110AB | 3- phase 380-440V | 110KW | 1-20KHZ | 0.05 MPA | 80kg/70kg | <40℃ |
KIM-160AB | 3- phase 380-440V | 160KW | 0.5-10KHZ | 0.05 MPA | 85kg/75kg | <40℃ |
KIM-260AB | 3- phase 380-440V | 260KW | 0.5-10KHZ | 0.06 MPA | 190kg/160 | <40℃ |
KIM-360AB | 3- phase 380-440V | 360KW | 0.5-10KHZ | 0.06 MPA | 250kg/200kg | <40℃ |
