KIS Series Superhigh Frequency Induction Heating Equipment Main Features

KIS Series Superhigh Frequency Induction Heating Equipment Main Features

1.KIS Series have high frequency, able to heat steel wire diameter less than Φ0.1mm.
2.Resonant conversion of technology: high efficiency, the power consumption is only 20%-50% of consumption of vacuum tube induction heating equipment.
3.MOSFET technology based , high frequency, light weight and small size.
4.Simple design; easy installation, here is no need for regulation and convenient operation.
5.Safe and Reliable: the equipment has no high voltage, the operation is safe.

Quantity:
Availability:





Inquire Add to Basket

Model:
KIS
Brand:
Deli

KIS Series UHF Induction Heater High-Frequency Heating System Precision Induction Equipment RF Induction Technology Non-Contact Heating Device Automated Temperature Control Industrial-Grade UHF Heater Energy-Efficient Induction Microsecond Response Heater

Product Description

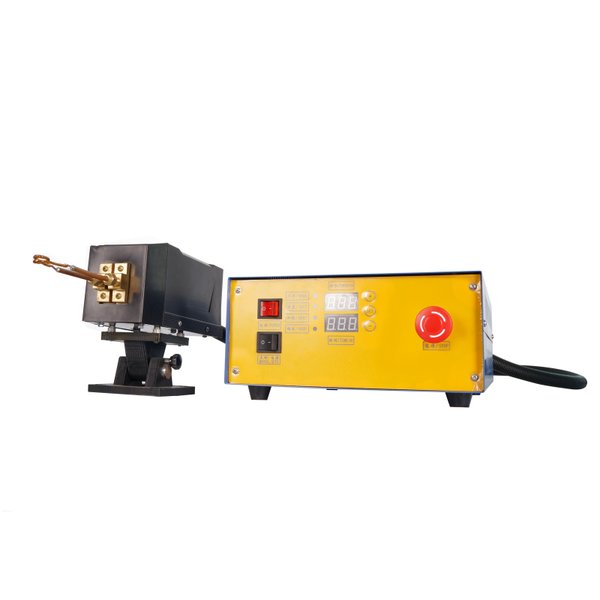

KIS Series Superhigh Frequency Induction Heating Equipment

Main Features

1. KIS Series have high frequency, able to heat steel wire diameter less than Φ0.1mm.

2. Resonant conversion of technology: high efficiency, the power consumption is only 20%-50% of consumption of vacuum tube induction heating equipment.

3. MOSFET technology based , high frequency, light weight and small size.

4. Simple design; easy installation, here is no need for regulation and convenient operation.

5. Safe and Reliable: the equipment has no high voltage, the operation is safe.

Main Technical Parameters

Type The Input Voltage	KIS-02KW	KIS-05KW	KIS-10KW	KIS-30KW	KIS-60KW
The Input Voltage	220V	220V	220V	380V	380V
The Max Output Power	2KW	5KW	10KW	30KW	60KW
Fluctuating Frequency	500K-1.5MHz	200K-1.2MHz	200K-500KHz	150K-200KHz	50K-150KHz

The Voltage of Cooling Water	0.01MPa	0.02MPa	0.02MPa	0.03MPa	0.03MPa
Weight	5kg	12kg	20kg	42kg	60kg
The Input Water	<40℃	<40℃	<40℃	<40℃	<40℃
