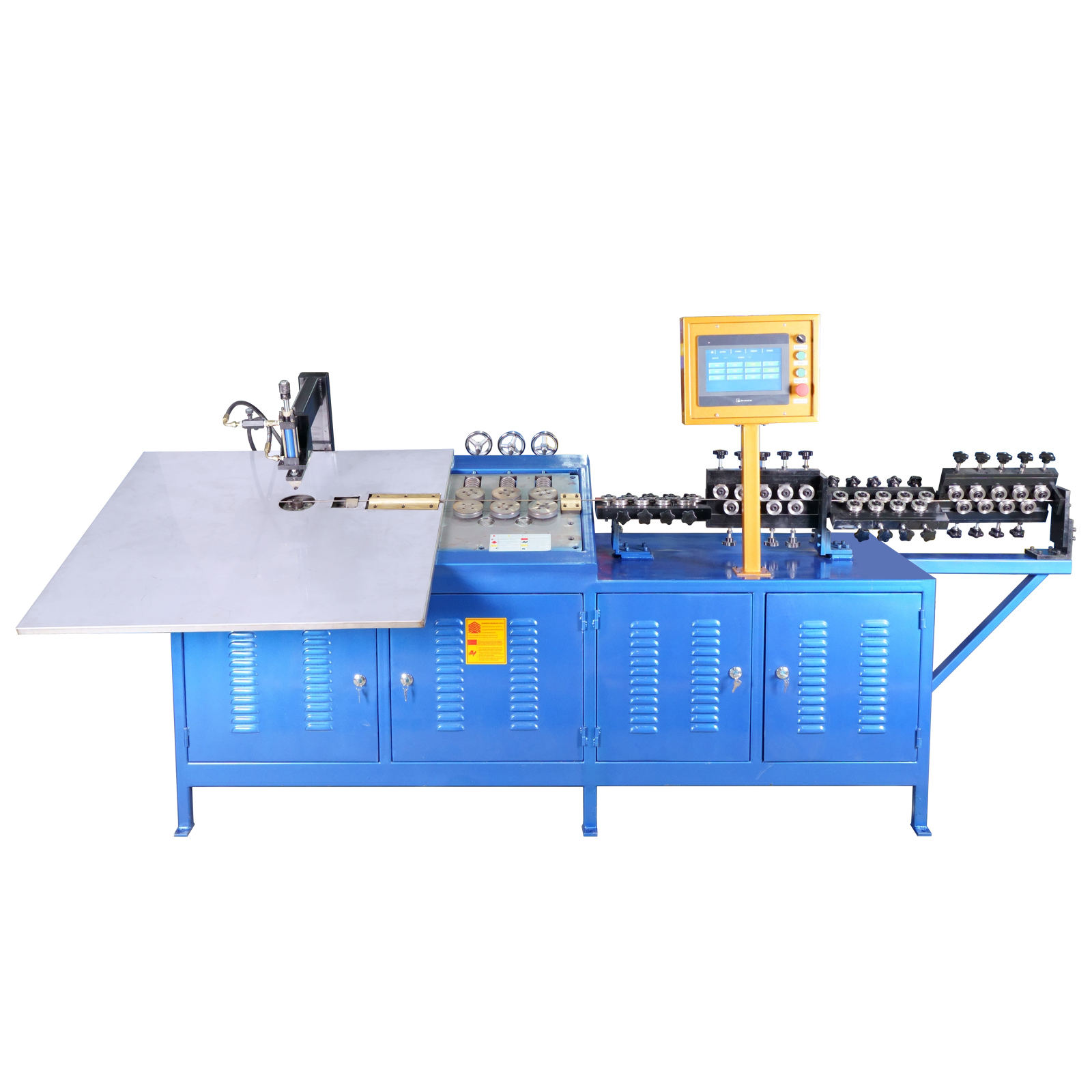

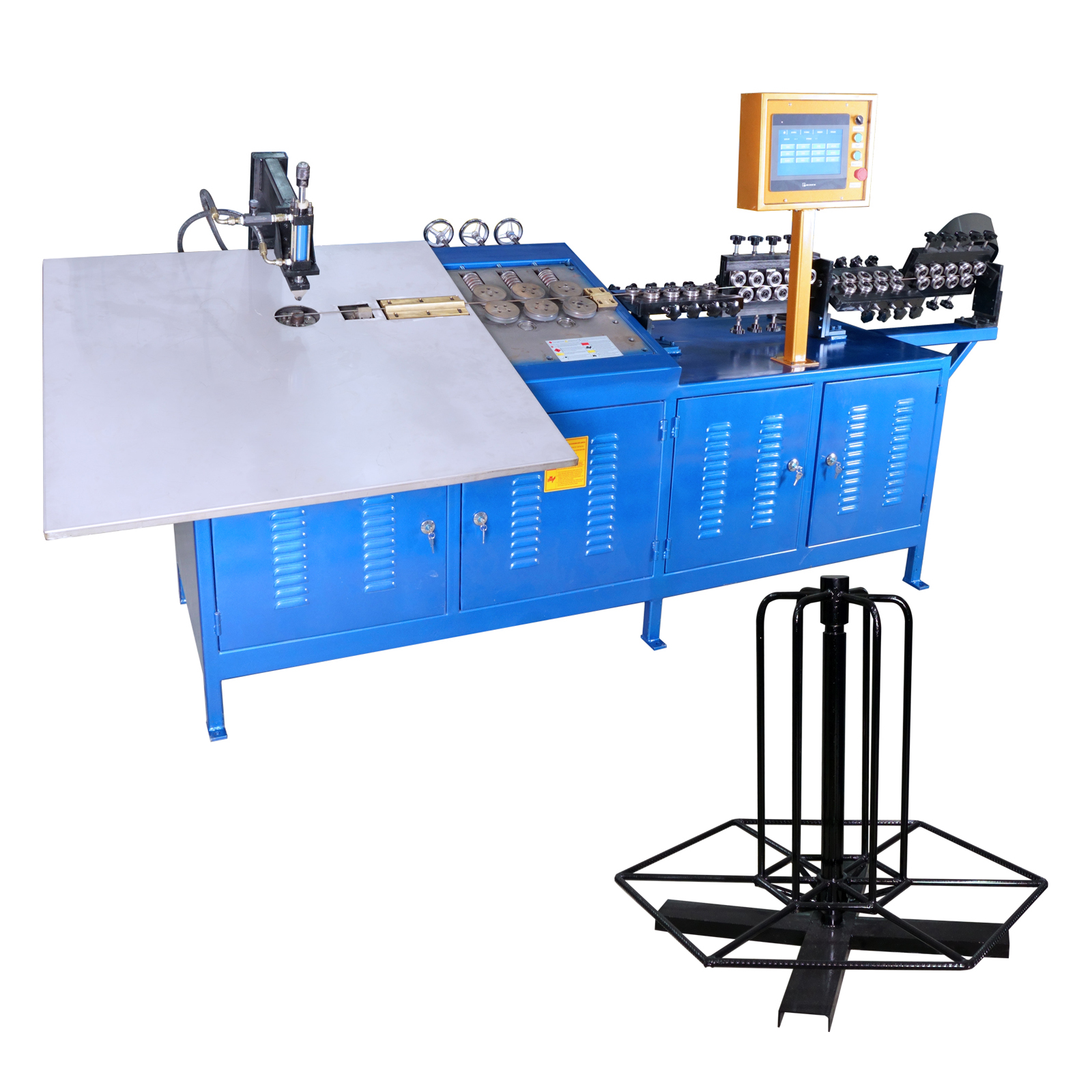

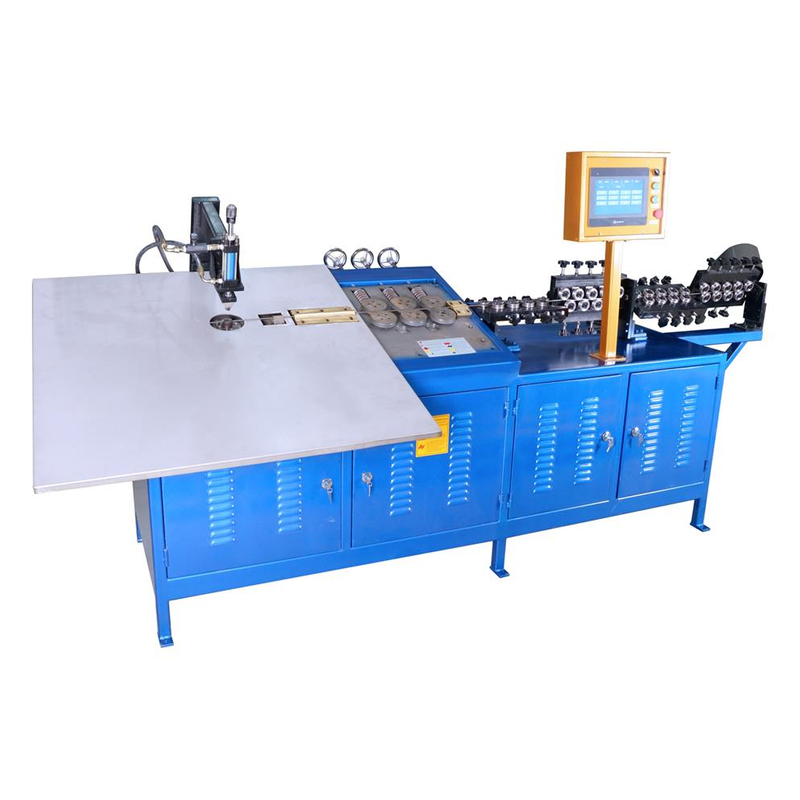

WB SERIES 2D CNC AUTOMATIC WIRE BENDING MACHINE

General Description:

2D CNC Fully Automatic Wire Bending Machine is mainly used for bending and forming various metal wire into different shape in two-dimensional.

The wire feeding and rotary bending system both adopt servo motor,significantly improves the precision of the product, and increases the speed and flexibility of machine effectively,furthermore greatly improves the production efficiency.

According to the characteristics of wire processing, various kinds and shapes,we specially design the controlling system with a memory storage function,which can save more than 100sets of processing program for different products, can optionally select any one of them when needed.

Main Features and Functions:

1.A full range of CNC Programmable wire bending machines for two-dimensional wire bending and forming, is manufactured according to European machine standards.

2.Heavy duty mechanical structures and minimum setup requirements due to reasonably design.

3.Friendly man-machine interface, user friendly programming, easy to operate.

4.Three groups of strong feeding-wire roller sub assemblies powered with a servomotor ensure accurate wire feeding and excellent straightening.

5.Automatic wire straightening, feeding, forming and recording the output amount.The wire product size and parameters and presetting quantity,can also be changed and modified during producing.

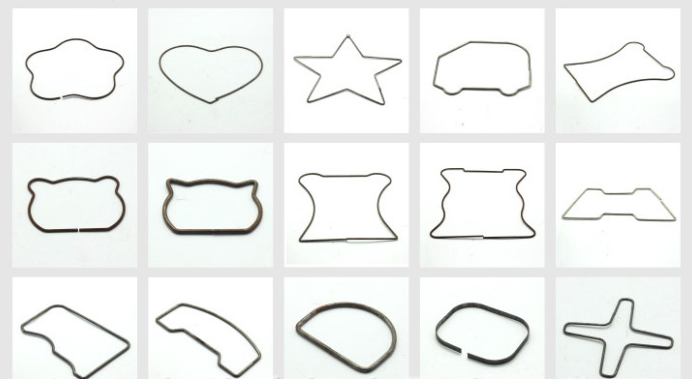

6.Available for forming and bending different diameter of steel wire,iron wire, stainless steel wire, copper and aluminum wire,also other metals,which cross-section is round, flat, square, hexagonal, etc.Widely used in the industry of wire products, fan nets, handicrafts, lampshades,and so on.

Main Technical Parameters:
